Drive Axle, with CV Joint

Drive Axle, with CV Joint

Special tools, testers and auxiliary items required

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Digital Torque Wrench (V.A.G 1756)

Removing

When disassembling and performing repairs on vehicle, the drive axles must not be allowed to hang down and contact the stops in the joint by overflexing.

Removing

- Loosen the drive axle to wheel hub bolt. Refer to one of the following:

=> [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs.

=> [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt without Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt without Ribs.

The wheel bearing must not be under a load while the drive axle bolt is loose.

If the wheel bearings are under the load of the vehicle weight, the wheel bearing will be damaged. This reduces the service life of the wheel bearings.

The drive axle bolt may be loosened a maximum of 90° when the vehicle is sitting on its wheels.

Vehicles without a drive axle must not be moved, otherwise the wheel bearing will be damaged. If a vehicle must be moved, be sure to note the following:

• Install an outer joint in place of the drive axle.

• Tighten the outer joint to 120 Nm.

- Remove the lower noise insulation.

- Disconnect the drive axle from the transmission flange shaft.

- Remove the wheel.

- Slide the outer Constant Velocity (CV) joint out of the wheel hub by hand.

- Remove the ball joint nuts - arrows -.






- Separate the ball joint from the control arm.

- Remove the drives axle from the wheel hub.

Installing

Remove any paint residue and/or corrosion from the threads/splines of the outer CV joint.

- Insert the drive axle.

- Insert the outer CV joint as far as possible into the wheel hub splines.

- Install the ball joint to the control arm and install the nuts - arrows -.






• Make sure that the ball joint boot is not damaged or twisted.

- Install the drive axle inner CV joint and initially tighten the bolts diagonally to 10 Nm.

- Tighten the bolts to specification in a diagonal sequence.

- Install the lower noise insulation.

- Tighten the drive axle to wheel hub bolt. Refer to one of the following:

=> [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs.

=> [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt without Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt without Ribs.

The vehicle must not rest on its wheels when doing so.

With the bolt loosened, the wheel bearing can be damaged by the vehicle weight.

Differences Between a Twelve Point Bolt With Ribs and a Bolt Without Ribs






The contact surfaces - arrows A and B - are different on the two bolts.

I Twelve point bolt with ribs - arrow A -
II Twelve point bolt without ribs - arrow B -

- Install the wheel and tighten the wheel bolts. Refer to => [ Wheel Bolt Tightening Specifications ] [1][2]Specifications.

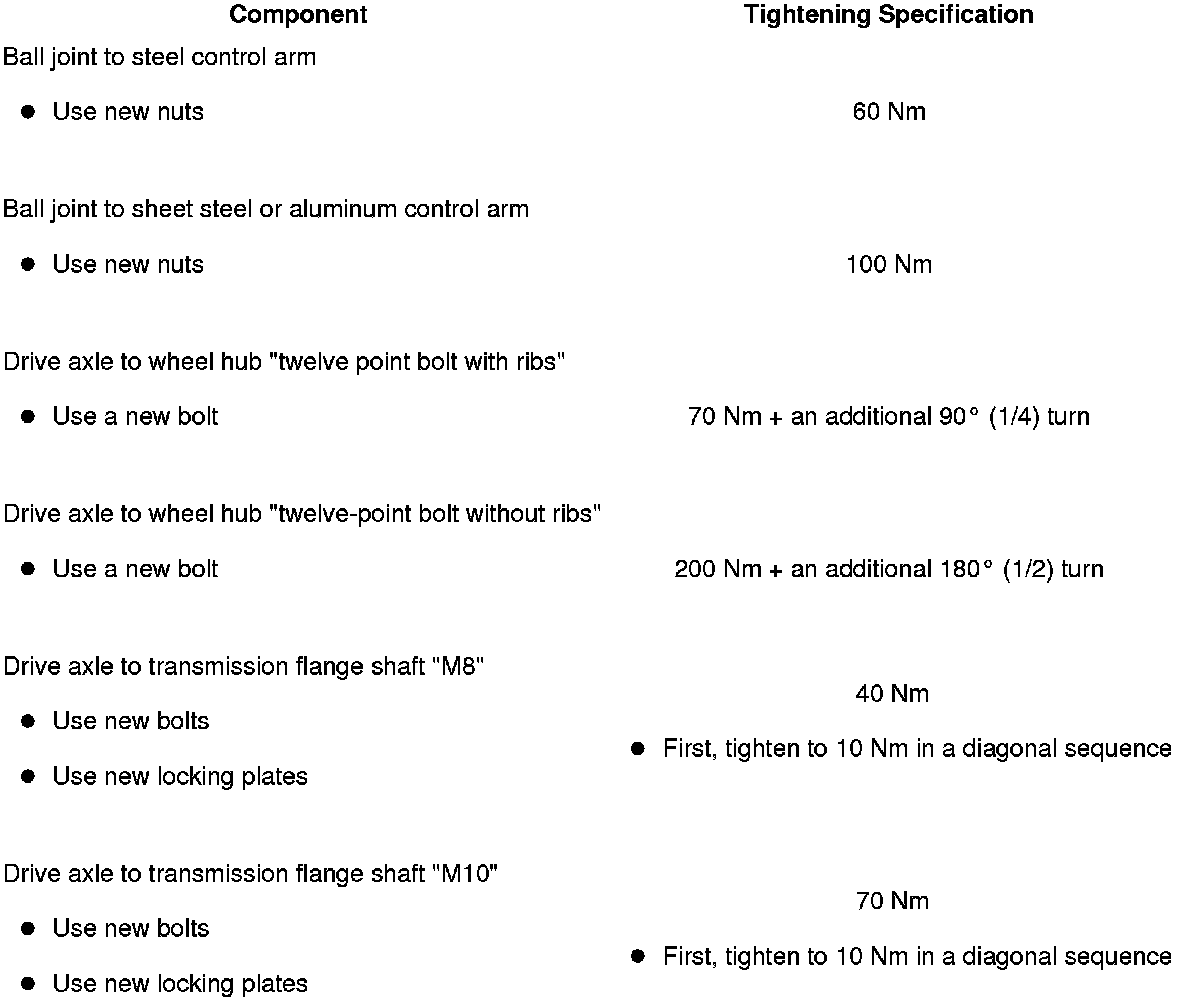

Tightening Specifications
