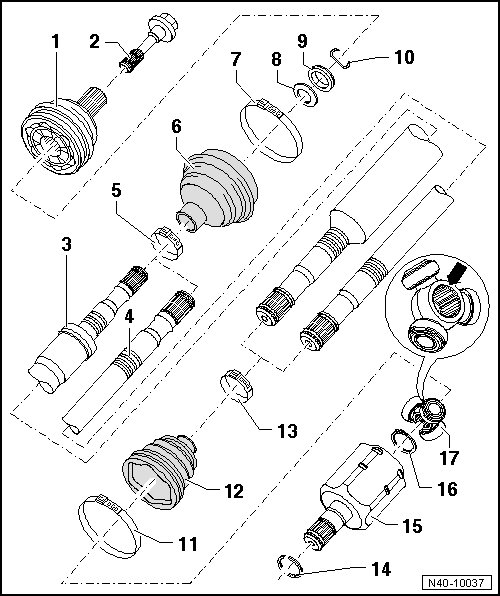

Drive Axle Overview, with Triple Roller Joint AAR2600i

Drive Axle Overview, with Triple Roller Joint AAR2600i






1 Outer Constant Velocity (CV) Joint

• Replace only as a complete unit.

• Removing, refer to => [ Removing the Outer Constant Velocity (CV) Joint ] Drive Axle, Triple Roller Joint AAR2600i.

• Installing: Drive onto the shaft using a plastic hammer until the expanded securing ring contracts.

• Checking, refer to => [ Outer CV Joint, Checking ] Outer CV Joint, Checking.

2 Bolt

• There are different versions.

• Allocation, refer to the Parts Catalog.

• There are 2 types of twelve point bolts, with and without ribs.

• When installing a twelve point bolt, always check what type of twelve point bolt is to be used.

• Use the correct tightening specification for the specific bolt.

• The tightening specification for a twelve point bolt with ribs is 70 Nm + an additional 90° (1/4) turn. For the loosening and tightening specifications, refer to => [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs.

• The tightening specification for a twelve point bolt without ribs is 200 Nm + an additional 180° (1/2) turn. For the loosening and tightening specifications, refer to => [ Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs ] Drive Axle Bolt Loosening and Tightening, Twelve Point Bolt with Ribs.

• Always replace if removed.

3 Right Axle Shaft

4 Left Axle Shaft

5 Clamp

• Always replace if removed.

• Tensioning, refer to => [ Tensioning the Small Diameter Clamp ] Drive Axle, CV Joint VL100.

6 Outer CV Joint Boot

• Check for tears and scuffing.

• Material: Hytrel (Polyelastomer).

7 Clamp

• Always replace if removed.

• Tensioning, refer to => [ Tightening Hose Clamp on the Outer CV Joint Boot ] Drive Axle, CV Joint VL100.

8 Concave Washer

• Installed position, refer to => [ Installed position: Concave washer and thrust washer on the outer CV joint ] Drive Axle, CV Joint VL100.

9 Thrust Ring

• Installed position, refer to => [ Installed position: Concave washer and thrust washer on the outer CV joint ] Drive Axle, CV Joint VL100.

10 Circlip

• Always replace if removed.

• Insert in the shaft groove.

11 Clamp

• Always replace if removed.

• Tension using hose clamp pliers (V.A.G 1275).

12 Inner CV Joint Boot

• Check for tears and scuffing.

13 Clamp

• Always replace if removed.

• Tension using hose clamp pliers (V.A.G 1275).

14 Circlip

• Always replace if removed.

15 CV Joint

16 Lock Ring

• Always replace if removed.

• insert in the groove on the shaft using circlip pliers (VW 161 A).

17 Triple Roller Star with Rollers

The chamfer - arrow - points to the axle shaft splines.

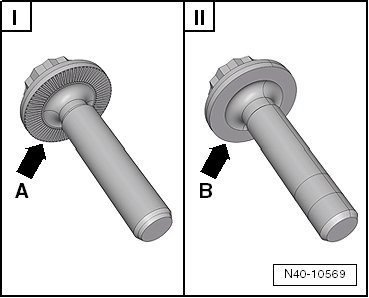

Differences Between a Twelve Point Bolt With Ribs and a Bolt Without Ribs





The contact surfaces - arrows A and B - are different on the two bolts.

I Twelve point bolt with ribs - arrow A -
II Twelve point bolt without ribs - arrow B -
