Inner CV Joint, Checking

Inner CV Joint, Checking

Removing

The CV joint must be disassembled to replace dirty grease or for checking the ball bearings and ball tracks for wear and damage.

- Swivel the ball hub and the ball cage.

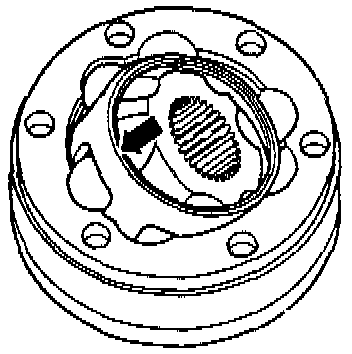

- Remove the ball cage in the - direction of the arrow -.

- Remove the ball bearings from the cage.

• The ball hub and joint piece are paired. Do not interchange.

- Flip out the ball hub from the ball cage via the running path of the ball bearing - arrows -.






- Check the joint piece, ball hub, ball cage and ball bearings for small broken off depressions (pitting buildup) and chafing.

Excessive circumferential backlash in the CV joint makes itself noticed via tip-in shock. The CV joint must be replaced in such cases. Flattening and running marks on the ball bearings are no reason to replace the CV joint.

Installing

- Insert the ball hub into the ball cage via the two chamfers. The installed position is random. Press the ball bearings into the cage.






The ball hub has 2 different distances between the ball tracks, a large and a small.

- Insert the hub with cage and ball bearings upright into the joint piece, the smaller space - b - must face toward the open side of the joint piece when doing this.






- Also note the chamfer on the inner diameter of the ball hub, it must be visible after swiveling in.

- Swing in the ball hub; to do so, swing out the hub far enough out of the cage - arrows - (as shown in the illustration).






- Swing in the hub with ball bearings by pressing forcefully onto the cage - arrow -.






CV Joint, Checking for Function

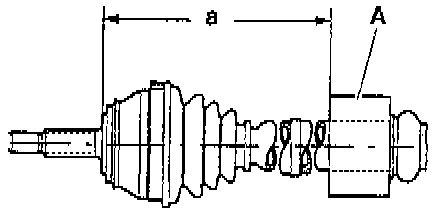

The CV joint is properly assembled, if the ball hub can be slid back and forth by hand over whole compensation length.
