Navigation/Radio - RNS 510 Navigation Radio Overview
91 12 02February 2, 2012
2026563 *Supersedes TB V911115 dated June 7, 2011 to update Model and model year applicability.*
Vehicle Information
Condition
RNS 510 Navigation Radio Overview
To provide an overview of the following:
^ Software Differences
^ Hardware Differences
^ Reset Procedure
^ Map Download
^ Display Color Options (aka "Skin")
Production Solution
Not applicable
Service
Software Differences

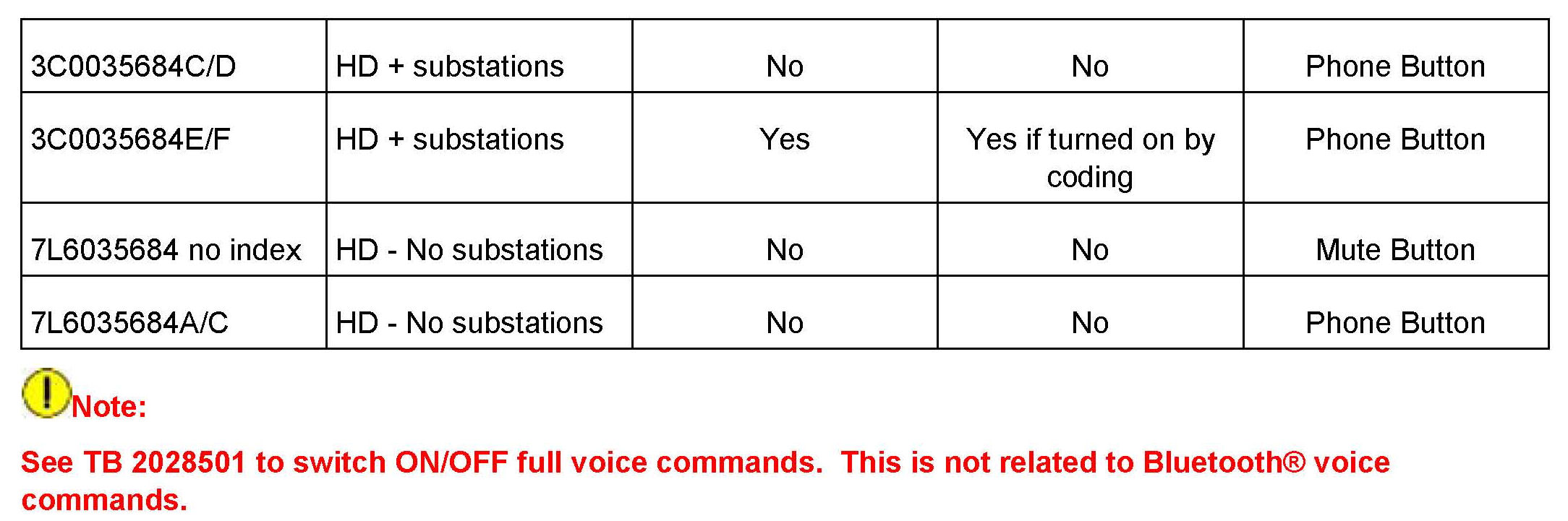

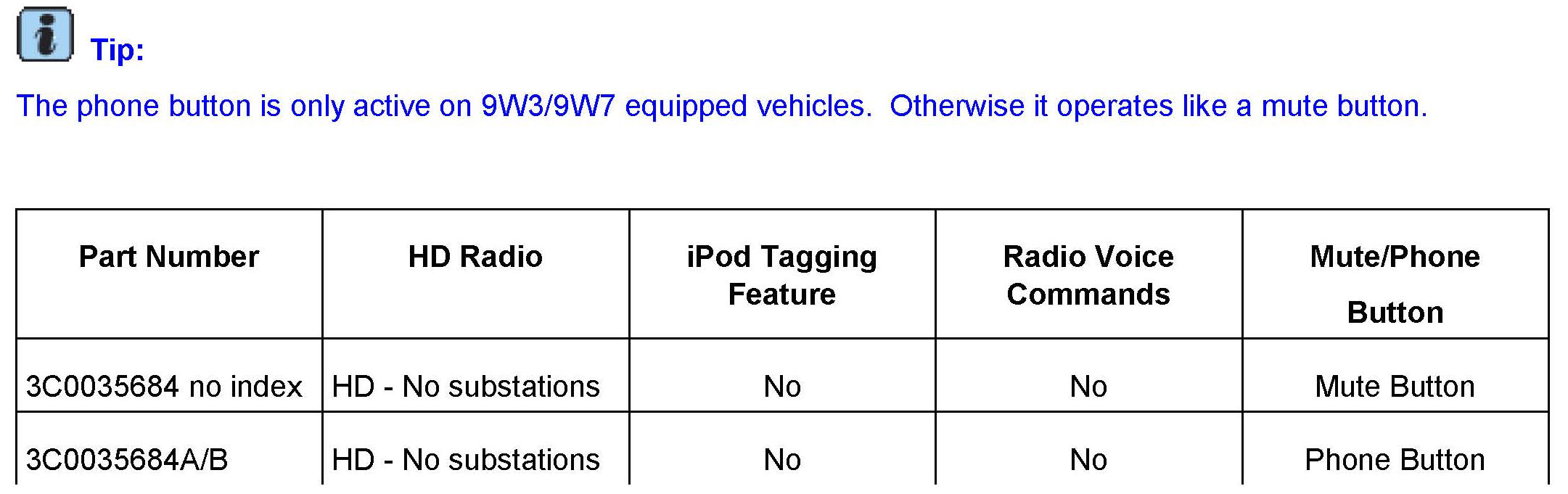

Hardware Differences
RNS 510 has seen multiple features integrated since its introduction in 2009. These features are not only driven just by software, but hardware components as well.

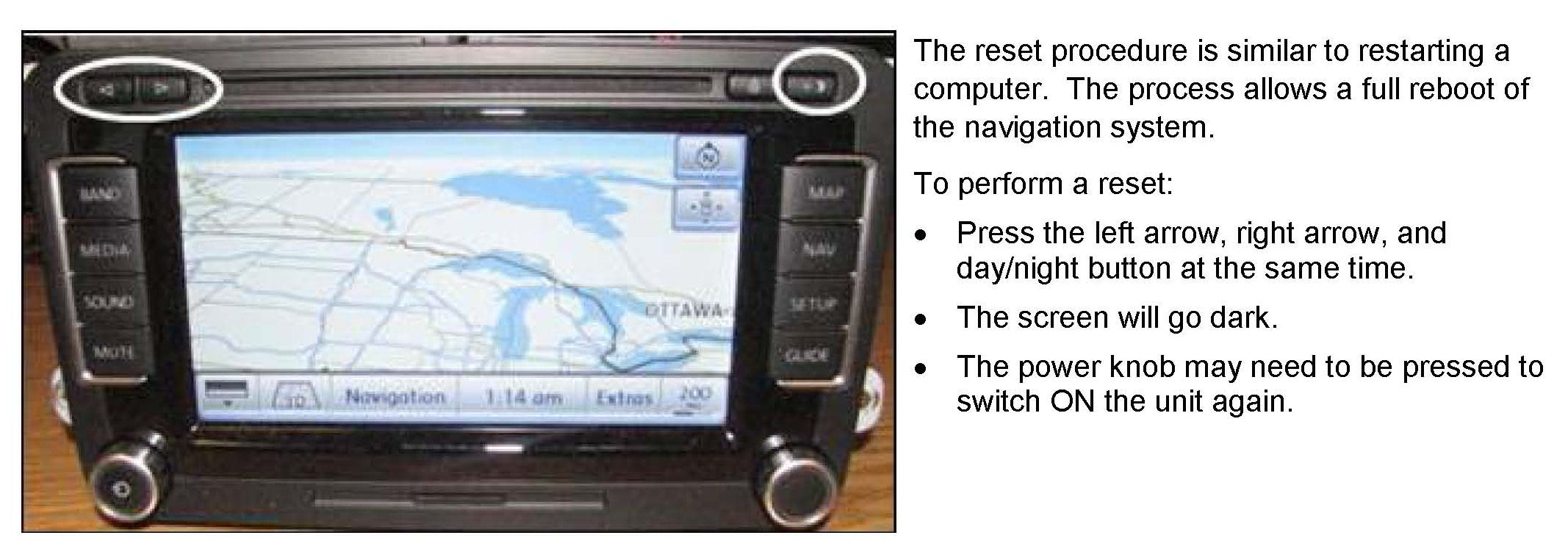

Reset Procedure
Map data
All RNS 510 equipped vehicles built after June 2011 are delivered with preloaded map data. It is no longer necessary to download map data at PDI.

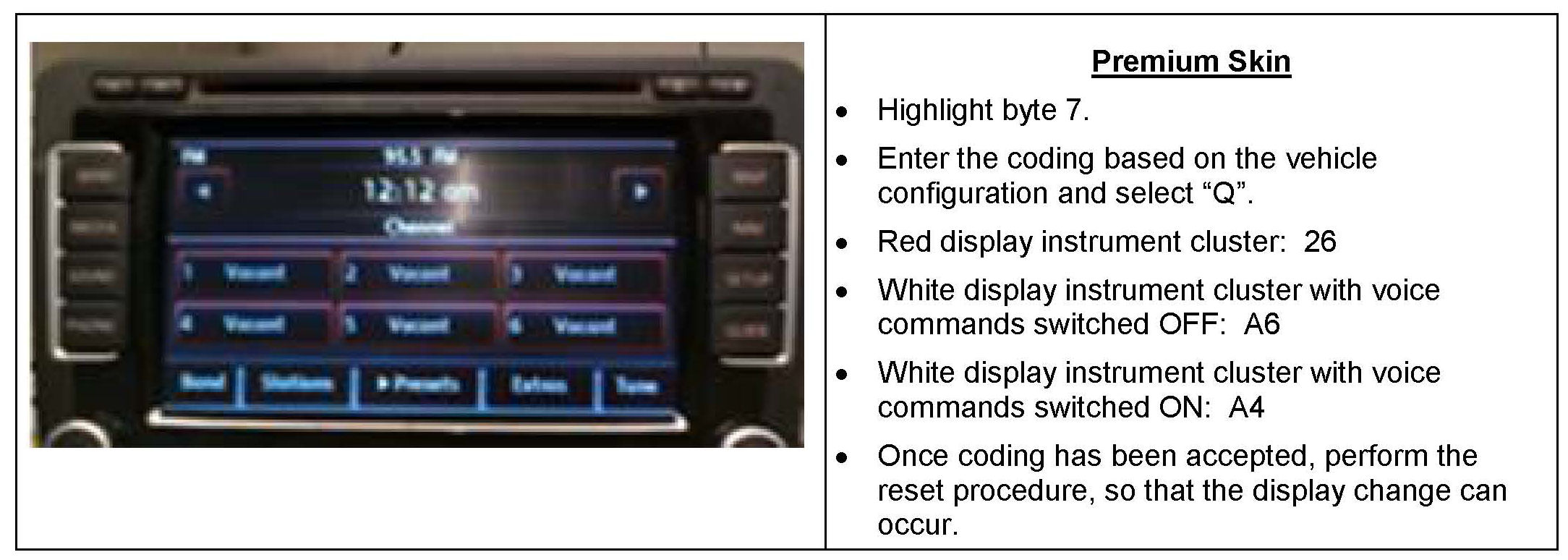

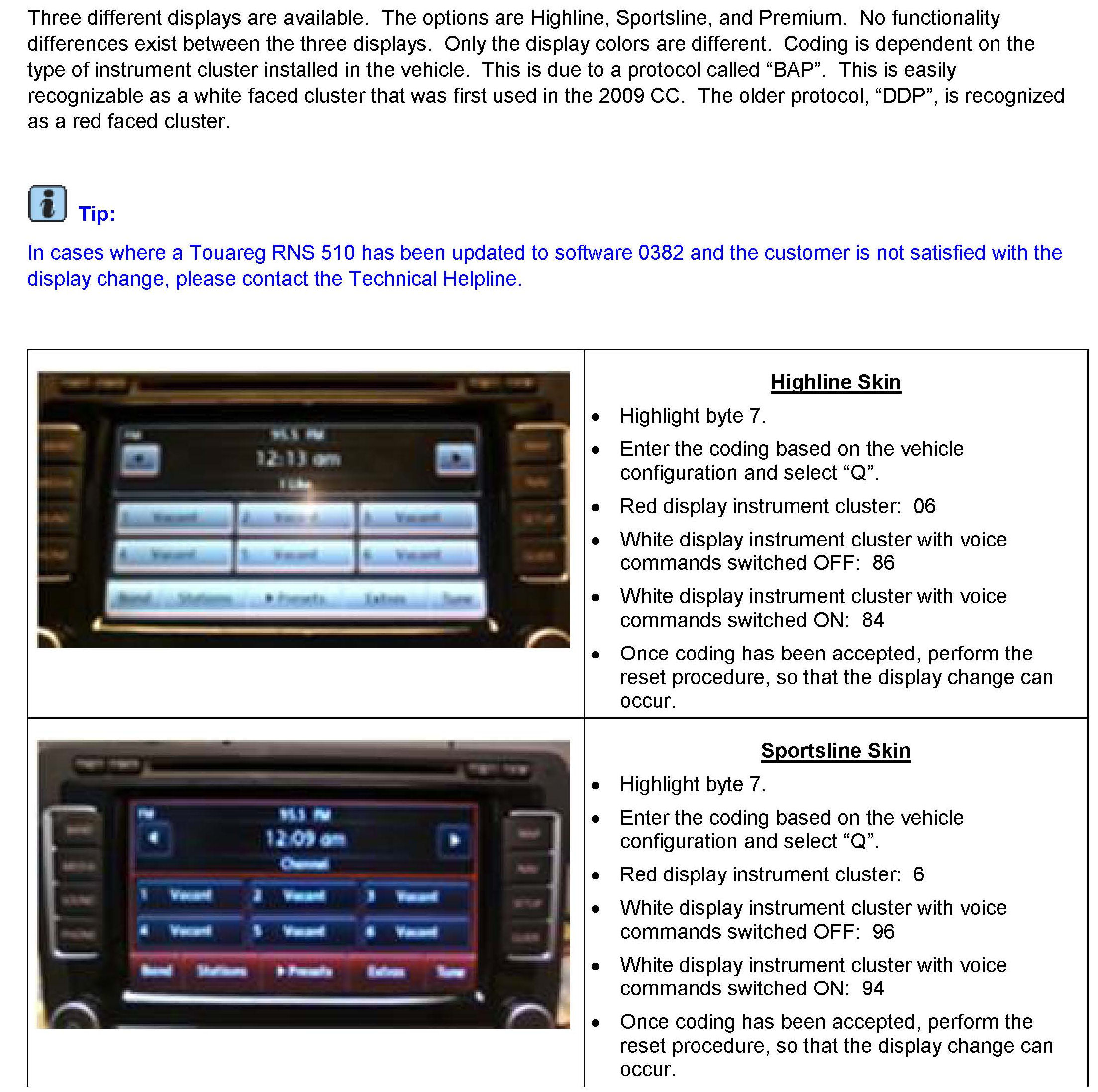

Display Color Options
Warranty
Information only.
Required Parts and Tools
Not applicable.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
