Multimedia Interface (MDI) - iPod(R) Tagging Overview
91 12 04February 10, 2012
2026784 *Supersedes T.B. V911117 to include additional model applicability.*

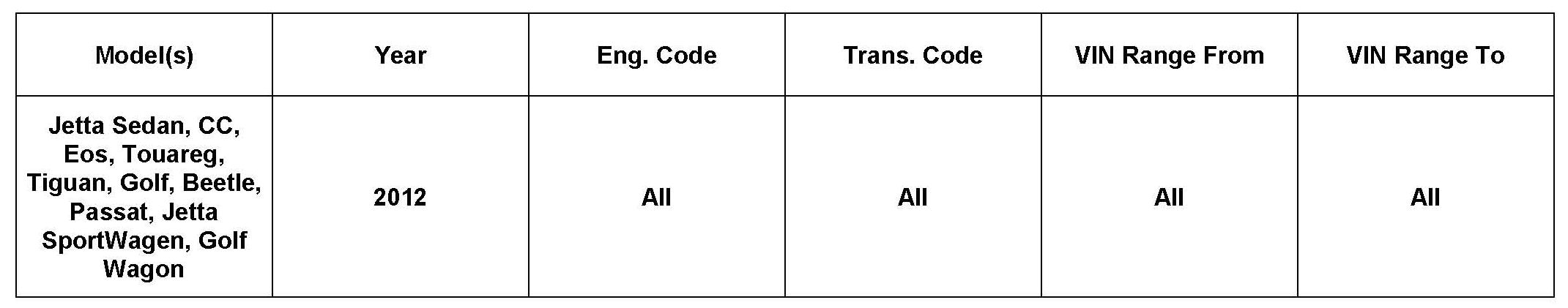

Vehicle Information
Condition
Multimedia Interface (MDI), iPod(R) Tagging Overview
To provide an overview of the following:
^ What is iPod(R) tagging?
^ How can I tag a song?
^ Will this work on older vehicles?
^ How many songs can be tagged?
^ Radio Requirements
^ Multimedia (MDI) Requirements
^ MDI Cable Requirements
^ iPod(R) Compatibility
^ Purchasing Songs
Production Solution
Not applicable.
What is iPod(R) Tagging?
The iPod(R) tagging feature is a method to capture digital metadata that contains artist, song, album, etc information. The tag is then transferred to the iPod(R) when the appropriate cable is connected to the multimedia (MDI) interface. Once the iPod(R) is synched to the user's iTunes, the song is displayed where it can be purchased.
How can I tag a song?
A song can be tagged using a radio in satellite radio or FM HD mode. To tag a song the following steps must be performed:

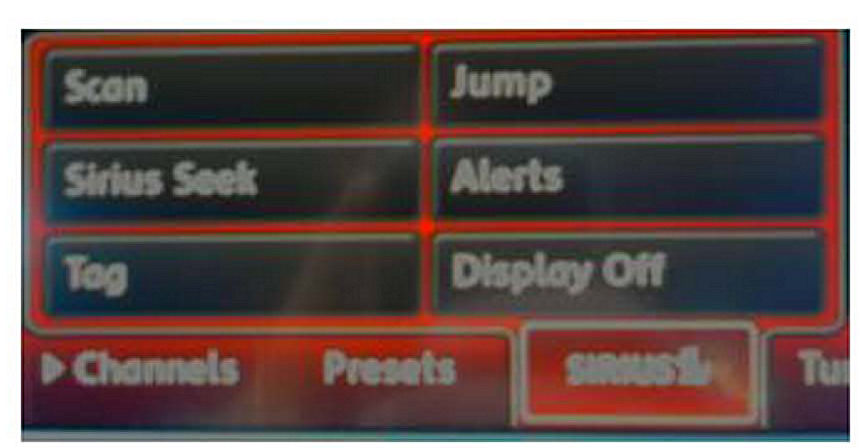

^ Press the Sinus" icon.
^ Press the "Tag" icon.

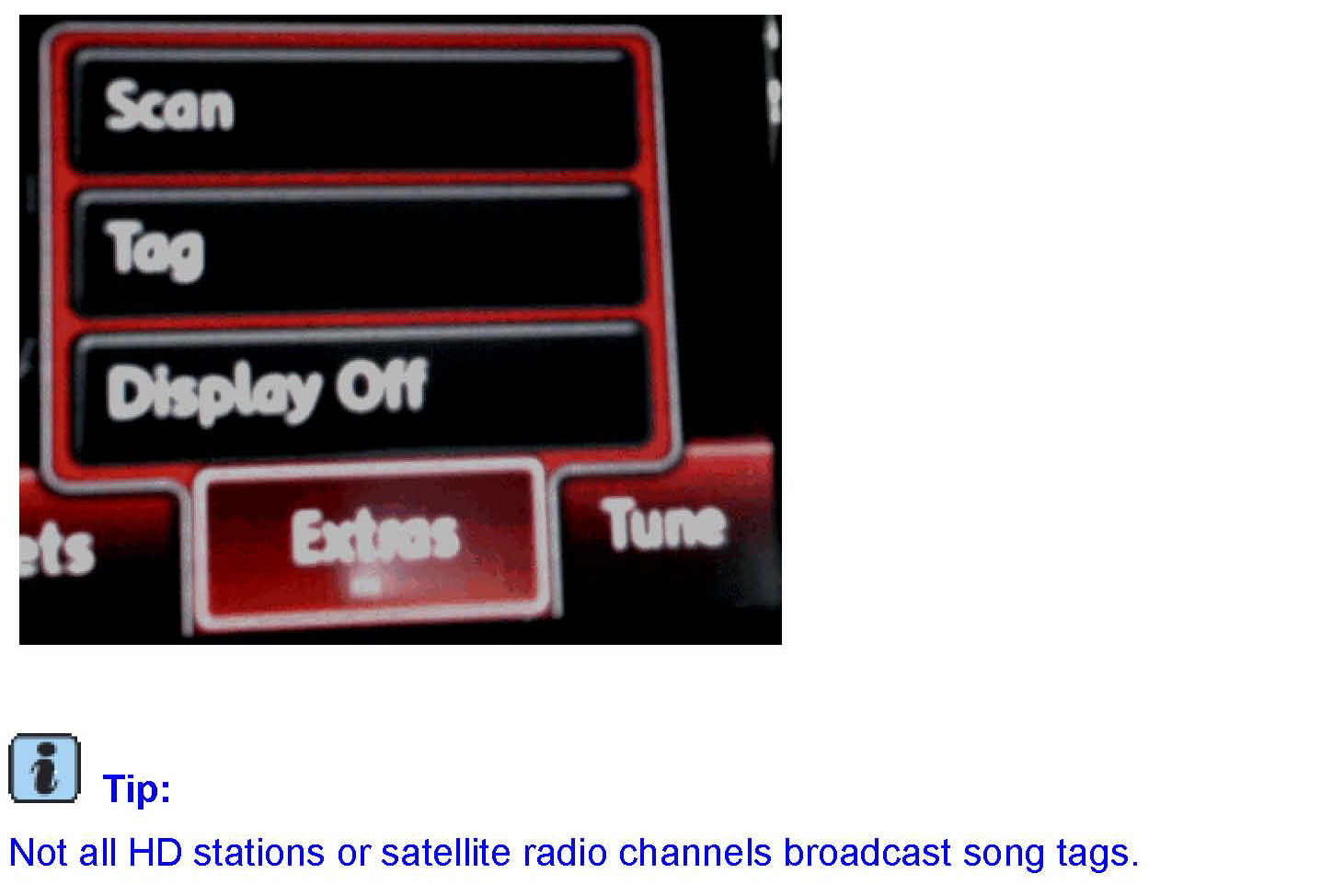

^ Press the Extra" icon.
^ Press the "Tag" Icon.
Will this work on older vehicles?
Unfortunately, due to the software & hardware requirements needed for this functionality an accessory upgrade is not being offered at this time.
How many songs can be tagged?
50 songs can be stored in the radios tagging feature. Once the compatible iPod(R) is connected, the tags will be transferred and cleared out of memory.
Tip:
Under Setup --> Radio --> "Manage Tag List" all tags stored in the radio can be deleted.

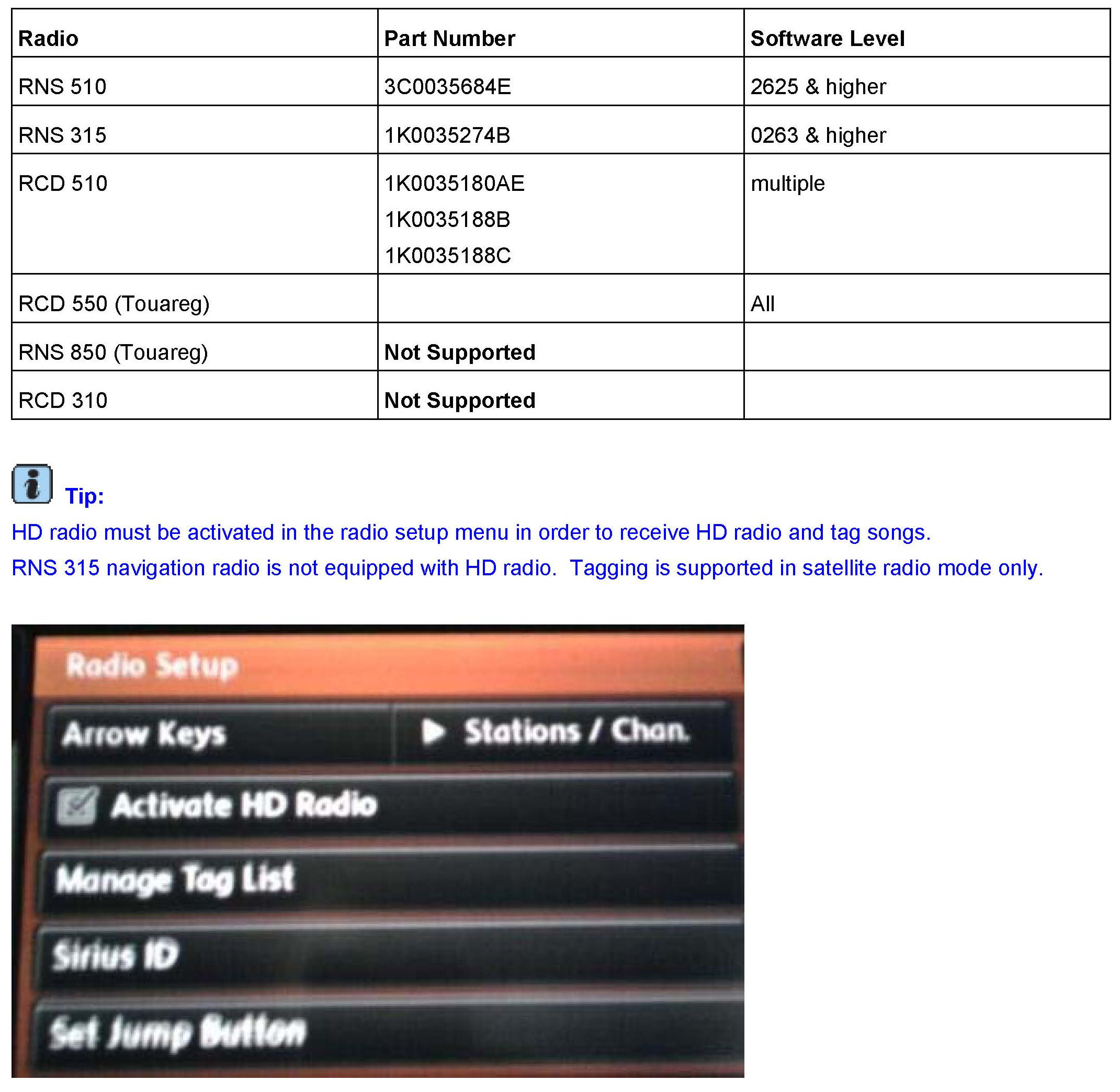

Radio Requirements
MDI Requirements
The MDI module must be at software 0240 or higher to have iPod(R) tagging ability.

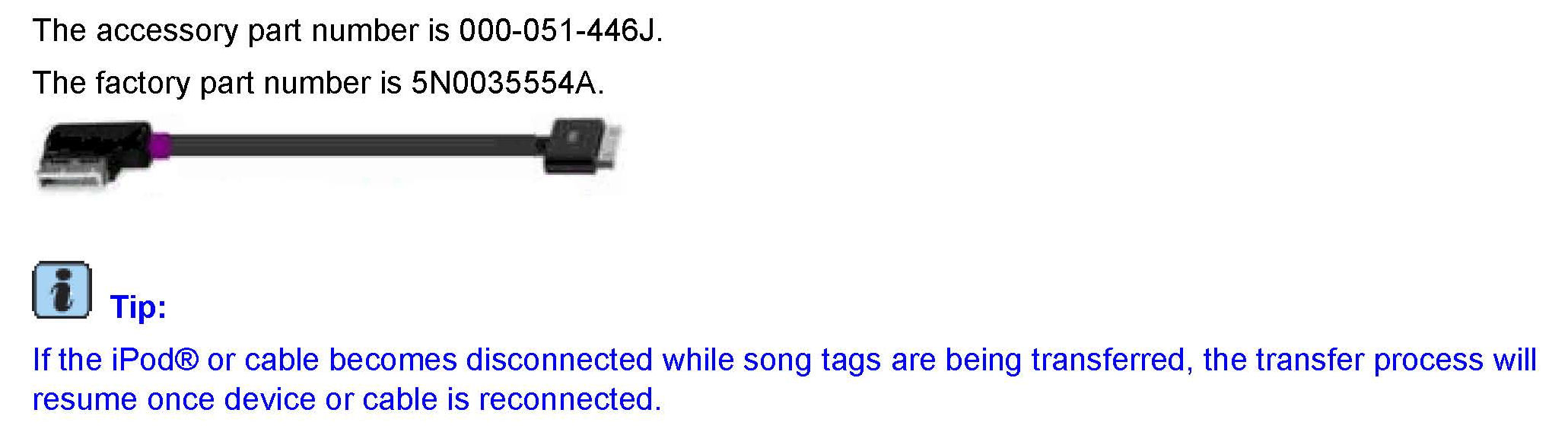

MDI Cable Requirements

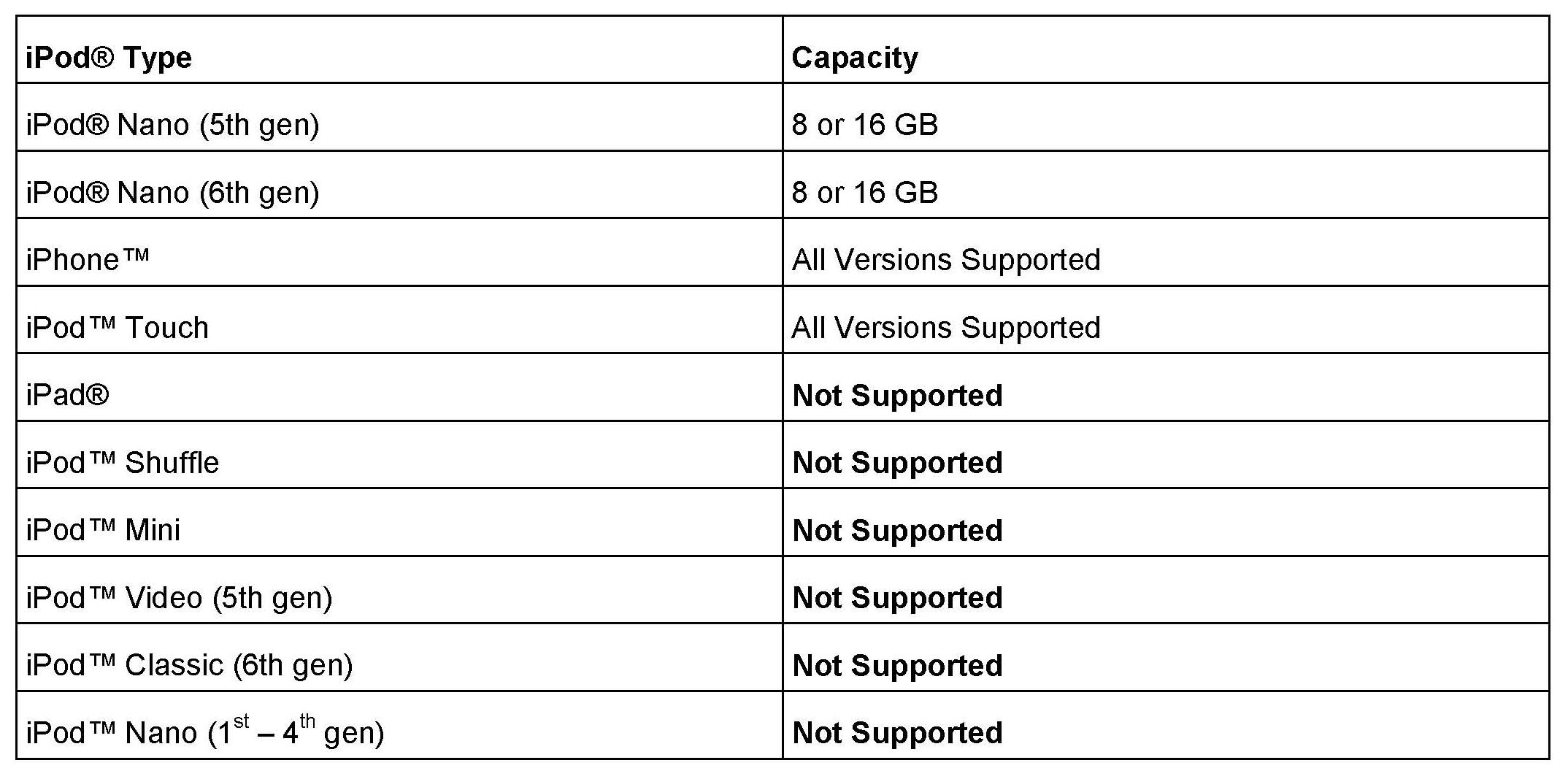

iPod(R) Compatibility

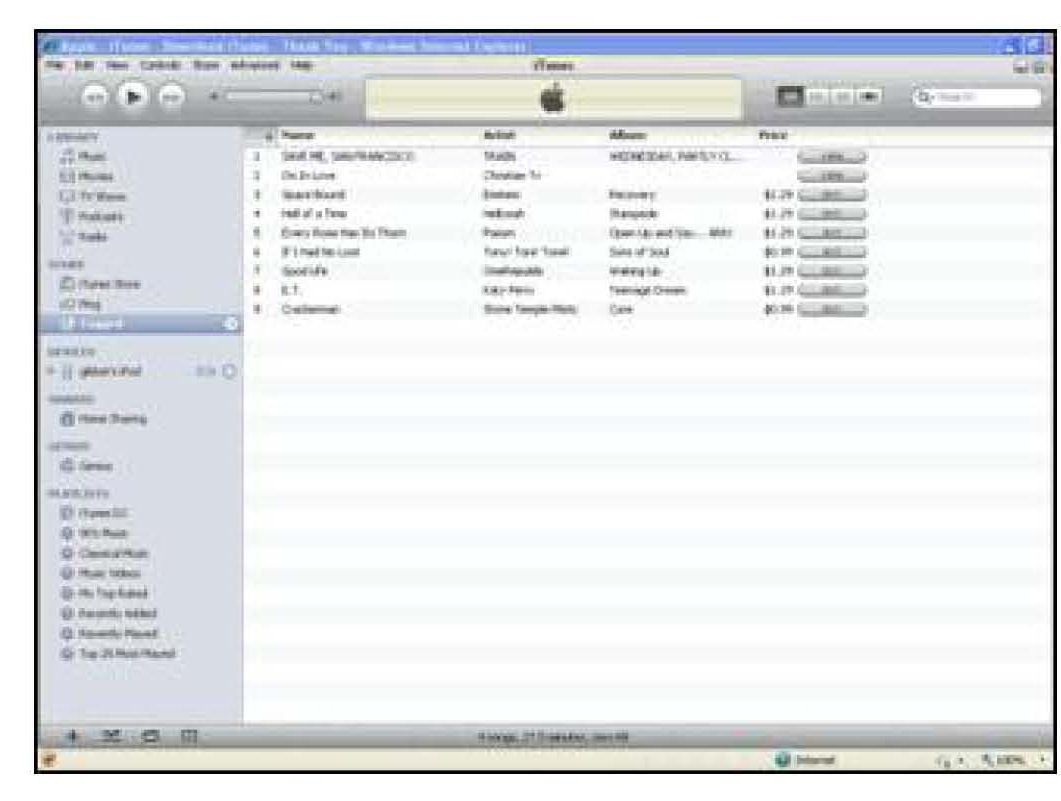

Purchasing Songs
^ Connect the iPod(TM) to the Users computer.
^ Once the iPod(TM) is selected, a selection called "Tagged" is available under Store".
^ Purchases of the song are then made or the tag can be deleted.
Warranty
Information only
Required Parts and Tools
Not applicable
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information. How many songs can be tagged?
