Bluetooth(R) - UHV NAR (9W7), Various Concerns
91 11 37December 6, 2011
2026015 *Supersedes V91 1109 dated March 30, 2011 to update information and include additional model and model year applicability.*
Vehicle Information
Condition
Bluetooth(R), UHV NAR (9W7), Various Complaints
The customer experiences concerns with the UHV-High (9W7) such as:
^ Unable to pair phone
^ Sporadically unable to pair phone
^ Calls are dropped sporadically
^ Voice recognition inoperative
^ Audio streaming inoperative
^ Phonebook download inoperative
Technical Background
The concern can be caused by several factors such as:
^ Incompatible phone
^ Customer misunderstanding
^ Internal problems with phone including incorrect system settings
^ Cellular provider network
^ Outside influence to control module
^ Bluetooth(R) module
Production Solution
Not applicable.
Service
Phone Compatibility:
Phone compatibility is defined as:
^ A phone that does not meet the minimum performance standards of the 9W7 Bluetooth� system.
^ A phone that is never tested with the vehicle Bluetooth(R) system. An example would be a phone that has not been sold in over 2+ years.
Incompatible Phones
Even though a phone is deemed incompatible, it may still work. The following are characteristics of an incompatible phone
^ Only basic Bluetooth� functionality such as hearing calls through speakers and voice being heard by caller through the microphone is available.
^ Advanced functions such as audio streaming and phonebook don't work or work only sporadically.
^ No Bluetooth(R) functionality available.
Phone compatibility List:
^ MY 2011 introduced the phone compatibility list on VW.com. The address can vary depending on the vehicle saved in your preferences.

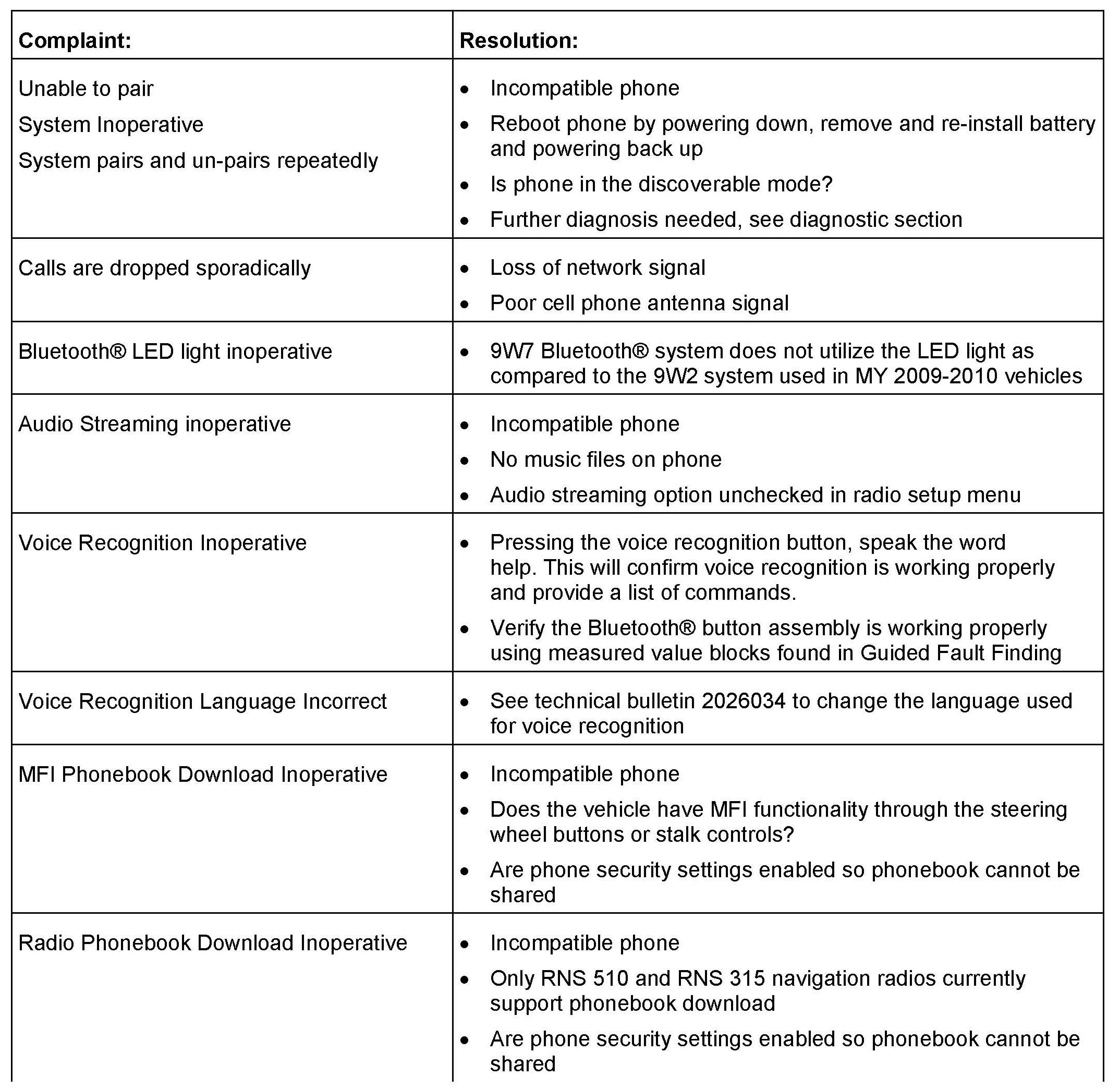

The following is a list of items to check to determine whether the concern is related to the cell phone network, phone, or a vehicle system issue.

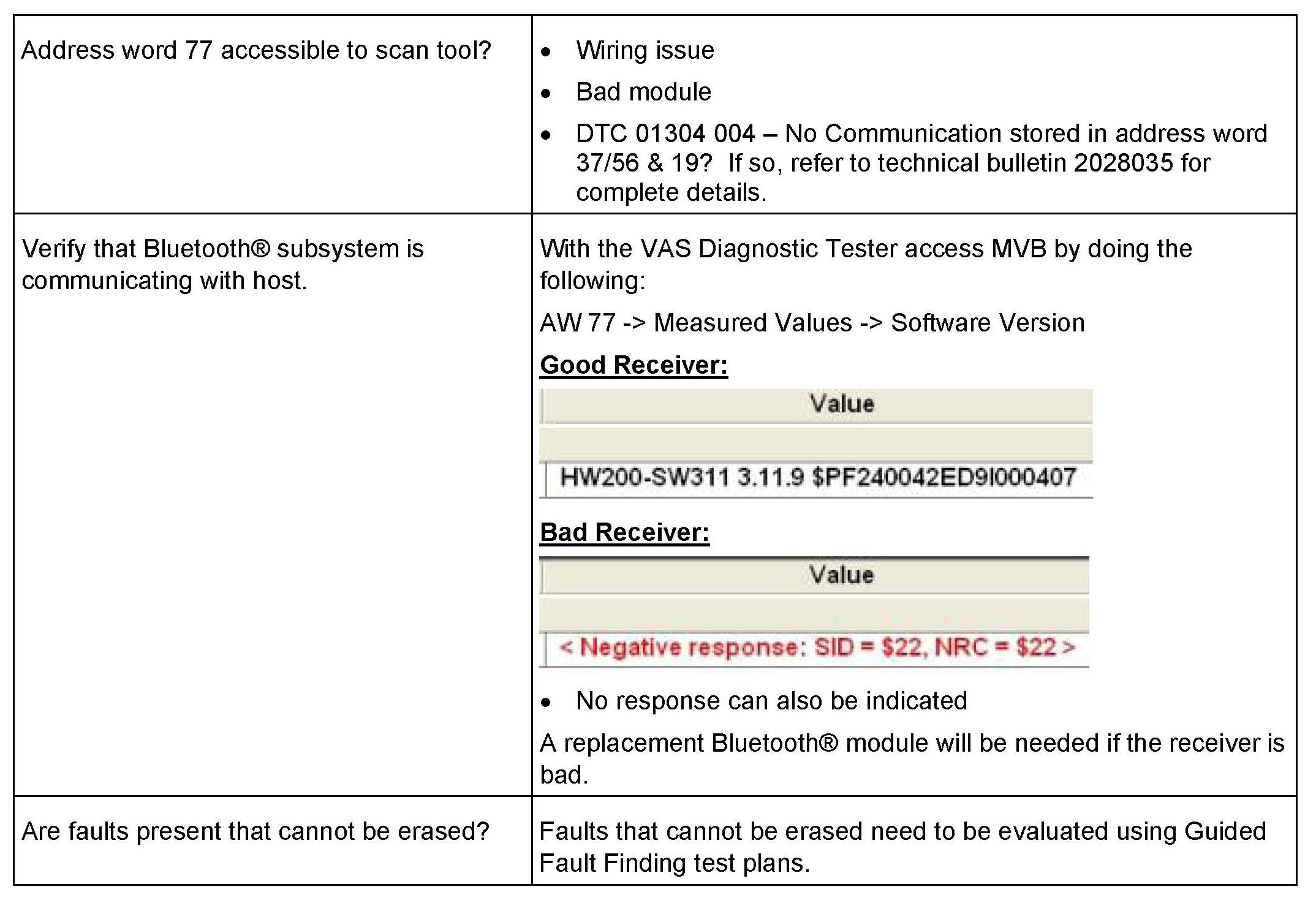

Bluetooth(R) Module Diagnostics:
Warranty

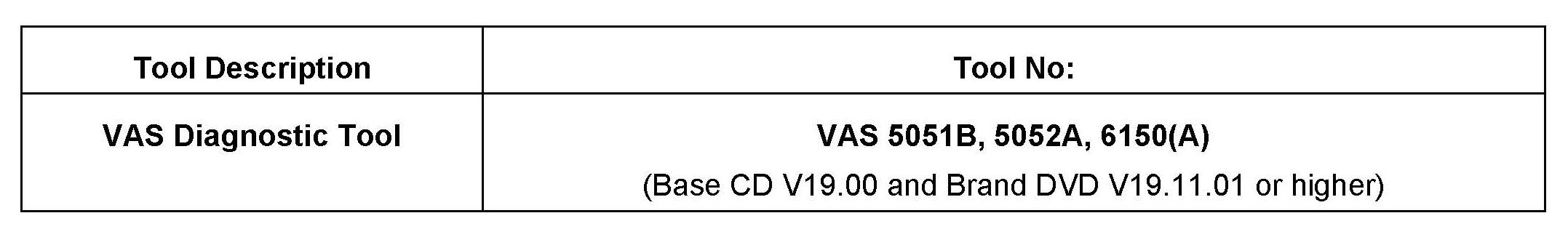

Required Parts and Tools
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
