AWD

Shock Absorber, with Adaptive Chassis DCC






1 Shock Absorber with Left or Right Rear Dampening Adjustment Valve (N338/N339)

• Removing and installing, refer to => [ Shock Absorber, with Adaptive Chassis DCC ] Shock Absorber, with Adaptive Chassis DCC.

2 Cap

3 Protective Pipe

4 Jounce Bumper

5 Shock Absorber Mounting

6 Nut

• M10 x 1.0

• 25 Nm

• Always replace if removed.

7 Protective Cap

Special tools, testers and auxiliary items required

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Shock Absorber Set (T10001)

Loosening and Tightening the Shock Absorber Mounting Nut





1 Ratchet (commercially available)
2 Socket wrench 21 mm (T10001/9)
3 Ratchet (T10001/11)
4 Socket wrench 21 mm (T10001/1)

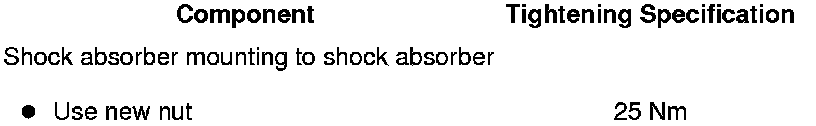

Tightening Specification
