FWD

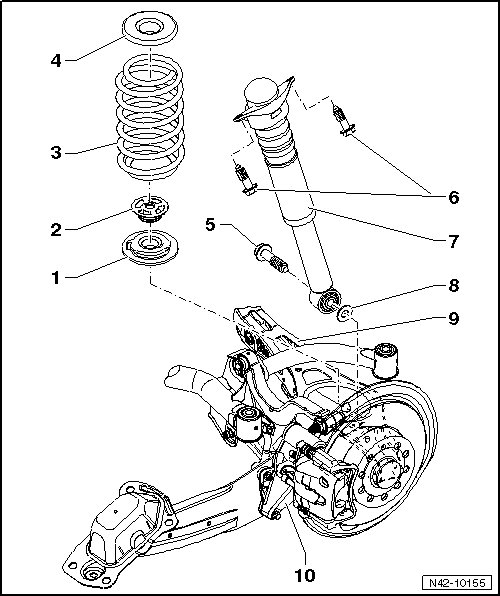

Shock Absorber and Coil Spring Overview

• shock absorber and coil spring overview, with adaptive chassis DCC. Refer to => [ Shock Absorber and Coil Spring Overview, with Adaptive Chassis DCC ] Shock Absorber and Coil Spring Overview, with Adaptive Chassis DCC.






1 Low Spring Plate

• The spring end must sit at the stop.

2 Assembly Aid

• Must not be used after removal.

3 Coil Spring

• There are different suspension versions. Refer to => [ Vehicle Data Label ] Vehicle Data Label.

• Removing and installing, refer to => [ Coil Spring ] Coil Spring.

4 Upper Spring Plate

5 Bolt

• M14 x 1.5 x 85

• 180 Nm

• Always replace if removed.

6 Bolt

• M10 x 35

• 50 Nm + an additional 90° (1/4) turn.

• Always replace if removed.

7 Shock Absorber

• Removing and installing, refer to => [ Shock Absorber ] Shock Absorber.

• There are different suspension versions, refer to => [ Vehicle Data Label ] Vehicle Data Label.

8 Washer

9 Lower Track Control Arm

• Removing and installing, refer to => [ Lower Track Control Arm ] Lower Track Control Arm.

10 Wheel Bearing Housing

• Removing and installing, refer to => [ Wheel Bearing Housing ] Wheel Bearing Housing.
