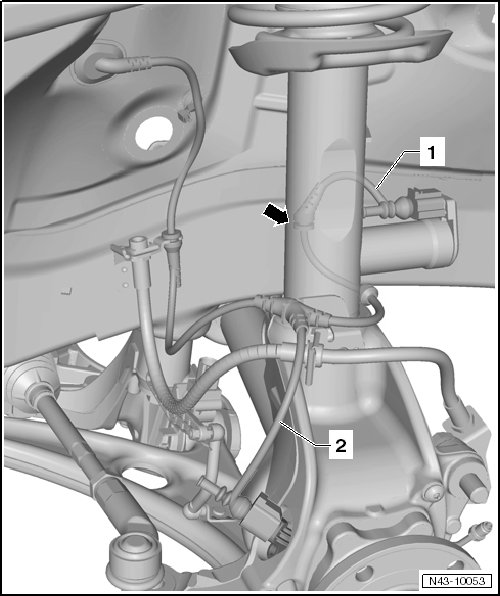

Right Front Suspension Corner Wire Routing

Right Front Suspension Corner Wire Routing

• Always check the wire routing.

• Always make sure that all the wires are attached in order and are not twisted in their retainer.






1 Right Front Damping Adjustment Valve Wire

• The wire must be mounted in the retainer on the shock absorber - arrow -.

2 Right Front ABS Wheel Speed Sensor Wire
