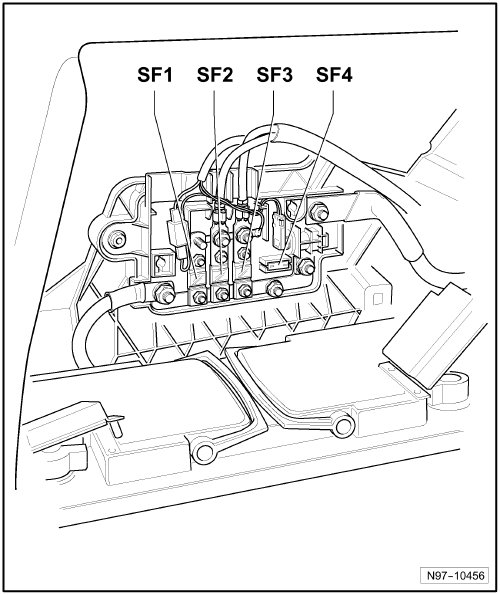

Fuse panel F -SF- ,inside the luggage compartment in the rear on the left side (BLV, BWS)

Fuses

Fuse panel F -SF- ,inside the luggage compartment in the rear on the left side (BLV, BWS)




Torque Settings







-
Fuse Colors
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7.5 A - brown
5 A - beige
3 A - purple
