Fuse 2 (30) -S205-







Fuses

Fuse 2 (30) -S205-









Component Location:

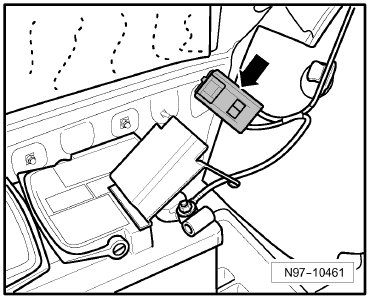

In luggage compartment, behind left side panel trim -Arrow-


Fuse rating:


• 60 A
