Engine Assembly - Fastener Tightening Specifications

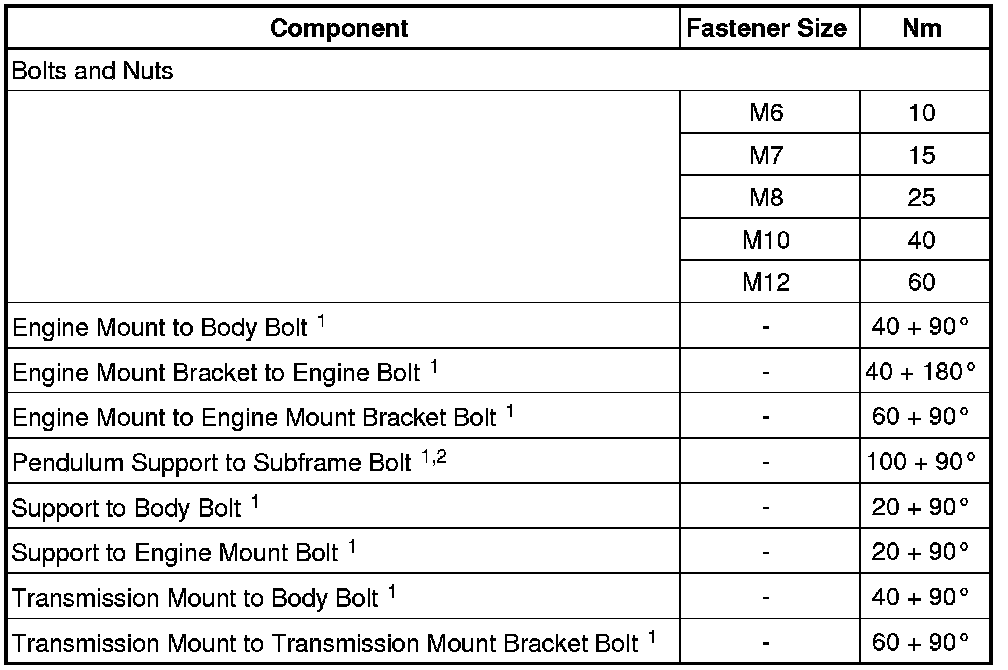

Fastener Tightening Specifications






• 1 Always replace

• 2 First, secure the pendulum support to the transmission then to the subframe
