Driver and Front Pass Side Airbag Crash Sensor -G179- / -G180-

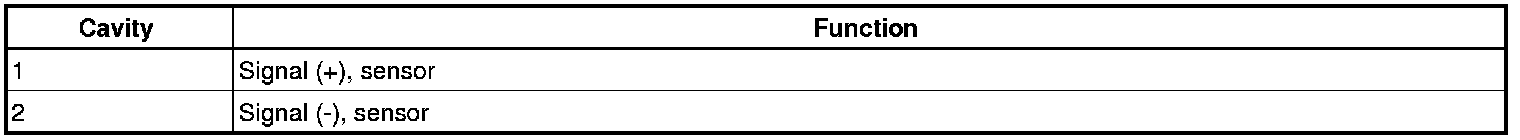

Airbag Systems - Connector Views

Driver and Front passenger side airbag crash sensor -G179- / -G180-
