Climate Control Exhaust Gas Sensor: Locations

Climatic / Climatronic System Overview

Air Quality Sensor

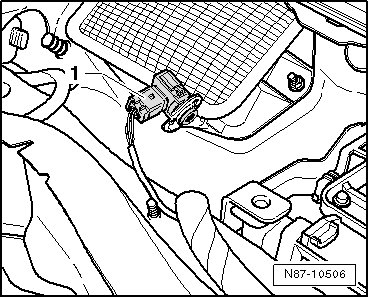

1 - Air quality sensor -G238- is installed at the right front on the intake air grille in the plenum chamber.
Discontinued from November 2007 for the American markets.
