Belt Webbing, Checking

Belt Webbing, Checking

- Pull belt completely out of retractor or lap belt adjustment tongue.

- Inspect the belt webbing for contamination and, if necessary, wash with mild soap solution => also refer to the operating information.

• If one of the types of damage (1 or 2) shown in the following is detected on a vehicle which has been in an accident - seat belt must be replaced completely with seat belt latch and seat belt height adjuster.

• If one kind of damage under points 1, 2, 3 and 4 is detected on a vehicle which has not been in an accident, only the damaged seat belt needs to be replaced.

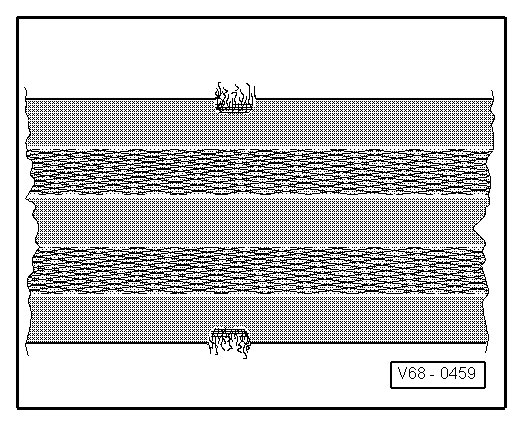

• Belt webbing cut, torn or chafed.

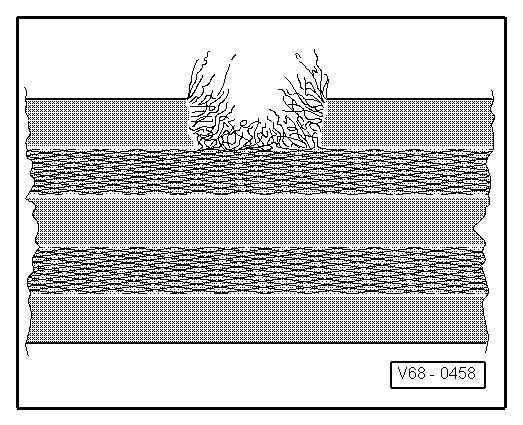

• Webbing loops on belt edge torn.

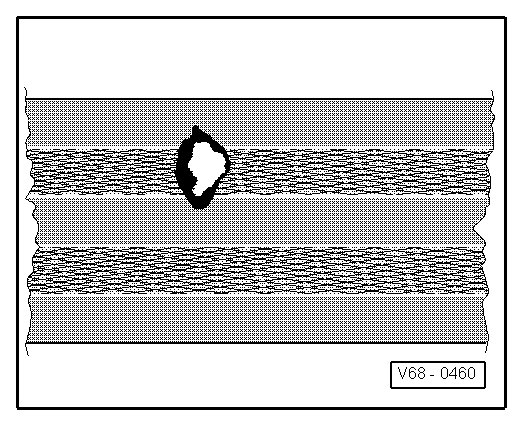

• Burn marks from cigarettes or similar.

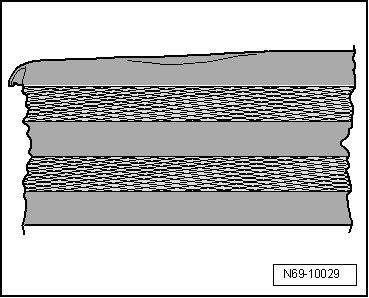

• One side of belt edge deformed or area of belt edge is wavy.
