Rear Seat Belts, Passat CC from MY 2009 and CC from MY 2010

Rear Seat Belts, Passat CC from MY 2009 and CC from MY 2010

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

• The removal and installation is described for seat belts with a belt tensioner. Removing and installing seat belts without a belt tensioner is the same.

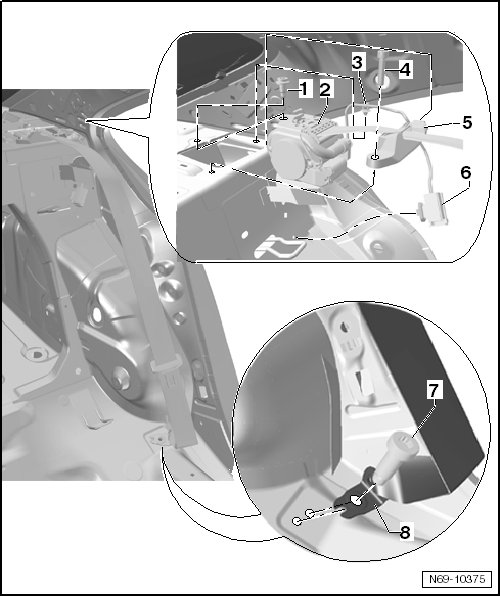

Assembly Overview






1 Bolt

• 40 Nm

2 Automatic belt retractor

3 Clip

• Replace if damaged

4 Bolt

• 6 Nm

5 Belt guide

6 Connector with clip

• If damaged, replace the clip

7 Bolt

• 40 Nm

8 Belt anchor

Removing

• Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to => [ Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions ] Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions.

• Pay attention especially to the instructions for belt tensioners. Refer to => [ Belt Tensioner, Special Instructions ] Belt Tensioner, Special Instructions.

- On vehicles equipped with a belt tensioner, disconnect the vehicle battery

- Remove the seat bench. Refer to => [ Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010 ] Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010

- Remove the side cushion:

• With rear side airbag, refer to => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag

• without rear side airbags => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag

- Remove the C-pillar trim.

• with sun shade => [ C-Pillar Trim, Vehicles with Sun Shade, Passat CC from MY 2009 and CC from MY 2010 ] C-Pillar Trim, Vehicles with Sun Shade, Passat CC from MY 2009 and CC from MY 2010

• without sun shade => [ C-Pillar Trim, Vehicles without Sun Shade, Passat CC from MY 2009 and CC from MY 2010 ] C-Pillar Trim, Vehicles without Sun Shade, Passat CC from MY 2009 and CC from MY 2010

- Remove the rear shelf:

• with sun shade => [ Rear Shelf with Sun Shade, Passat CC ] Rear Shelf with Sun Shade, Passat CC

• without sun shade => [ Rear Shelf without Sun Shade, Passat CC ] Rear Shelf without Sun Shade, Passat CC

- Remove the bolt - 7 - and remove seat belt guide - 8 - from body.

Electrostatic charges may result in involuntary deployment of the belt tensioner. Therefore, the technician must discharge static electricity from the body before disconnecting the ignition wire and ground wire. This is done, for example, by briefly touching the body or the door striker or pin.

- Disconnect the wiring harness and loosen the connector and clip - 6 -.

- Remove the bolt - 4 - and then remove the seat belt guide - 5 -.

- Remove the clip - 3 - from the body.

- Remove bolt - 1 - and remove automatic belt retractor - 2 - from mount.






Installing

- Install in reverse order of removal.
