Diagram 73/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

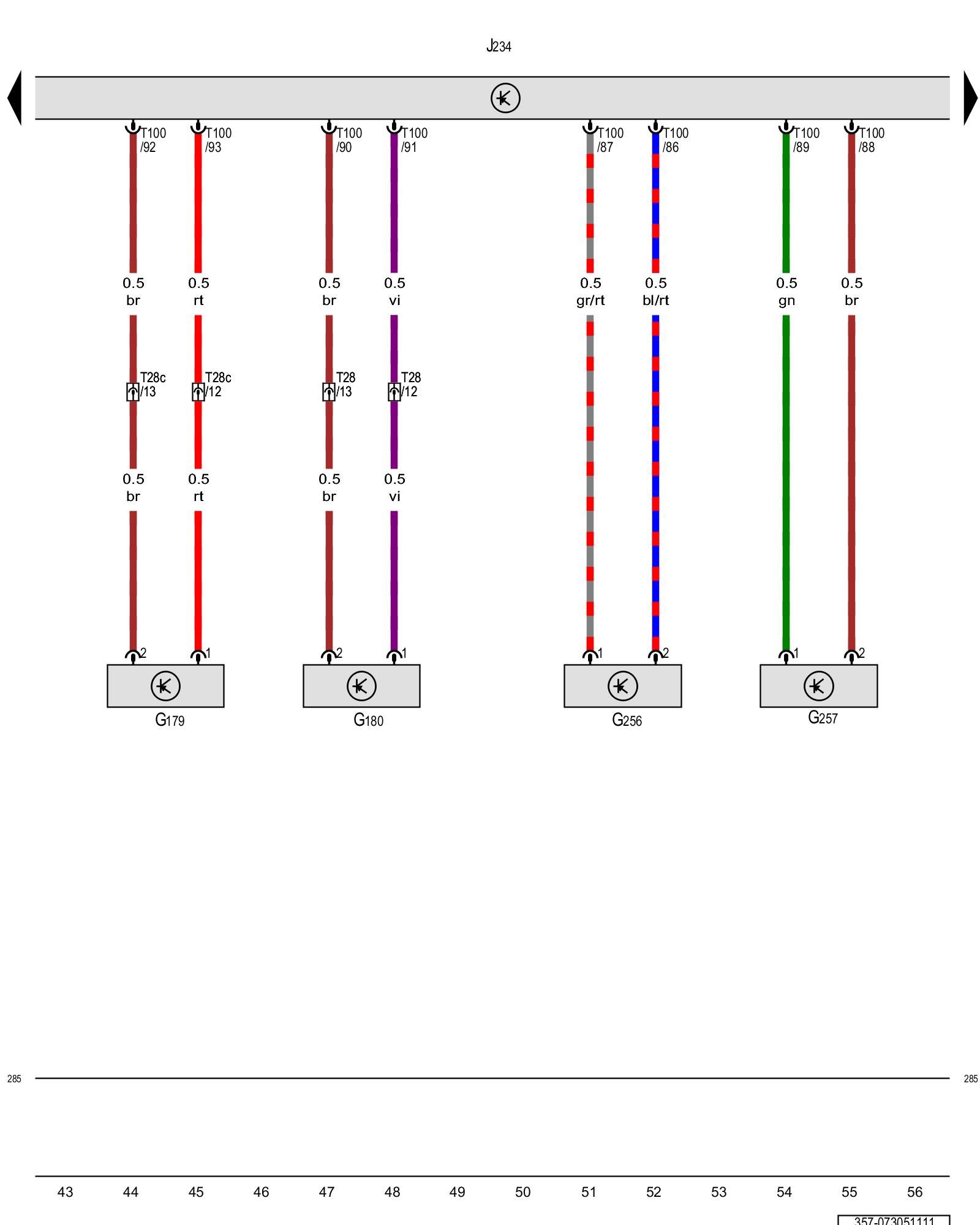

Driver side airbag crash sensor, Front passenger side airbag crash sensor, Driver side rear side airbag crash sensor, Passenger side rear side airbag crash sensor, Airbag control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G179 - Driver side airbag crash sensor Locations Driver and Front Pass Side Airbag Crash Sensor -G179- / -G180-

G180 - Front passenger side airbag crash sensor Locations Driver and Front Pass Side Airbag Crash Sensor -G179- / -G180-

G256 - Driver side rear side airbag crash sensor Locations Left and RR Thorax Airbag Crash Sensor -G256- / -G257-

G257 - Passenger side rear side airbag crash sensor Locations Left and RR Thorax Airbag Crash Sensor -G256- / -G257-

J234 - Airbag control module Control Modules in Interior [1][2]Air Bag Control Module

T28 - 28-pin connector, in the connector station, right A-pillar

T28c - 28-pin connector, in the left A-pillar connector station

T100 - 100-pin connector

(285) - Ground connection 7 (in interior wiring harness)
