Diagram 73/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

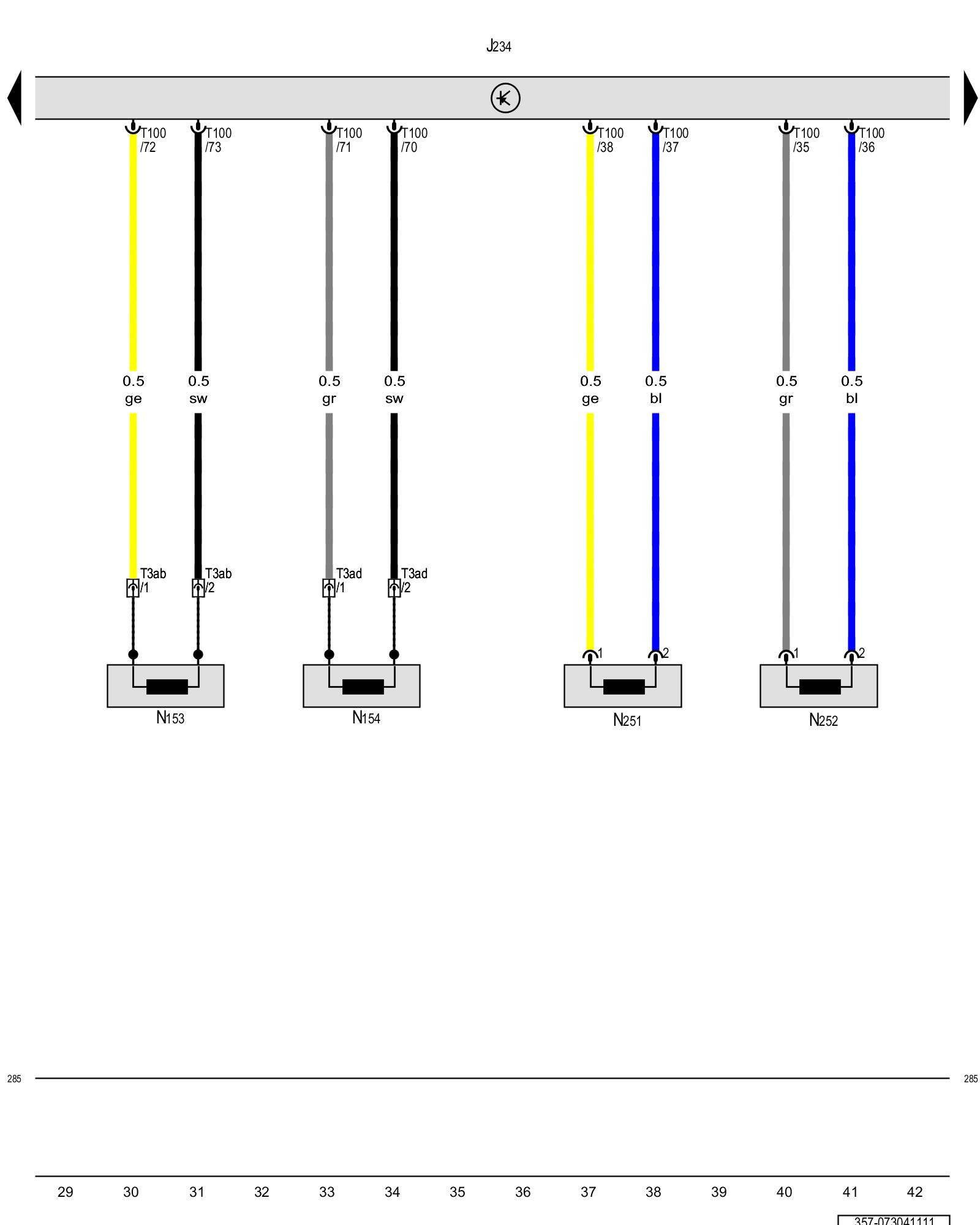

Airbag control module, Driver seat belt tensioner igniter 1, Front passenger seat belt tensioner igniter 1, Driver head curtain airbag igniter, Front passenger head curtain airbag igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Control Modules in Interior [1][2]Air Bag Control Module

N153 - Driver seat belt tensioner igniter 1 Locations [1][2]Diagrams

N154 - Front passenger seat belt tensioner igniter 1 Locations [1][2]Diagrams

N251 - Driver head curtain airbag igniter Airbag Component Location Overview Driver and Front Pass Head Curtain Airbag Igniter -N251- / -N252-

N252 - Front passenger head curtain airbag igniter Airbag Component Location Overview Driver and Front Pass Head Curtain Airbag Igniter -N251- / -N252-

T3ab - 3-pin connector, yellow

T3ad - 3-pin connector, yellow

T100 - 100-pin connector

(285) - Ground connection 7 (in interior wiring harness)
