Charge Air Hose to Noise Generator

Charge Air Hose to Noise Generator

• The noise generator is not installed on all vehicles.

Removing

- Remove the cover for the intake air duct, disengage the side clips - arrows - to do so.






- Unclip the lower intake air duct, disengage the clips - arrows - to do so.






- Remove both the lower intake air duct and the air duct hose.

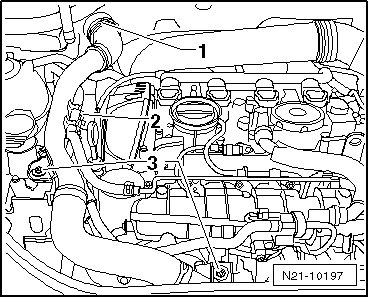

- Open the latch - 1 -, unclip the fuel lines - 2 - and loosen the bolts - 3 -.

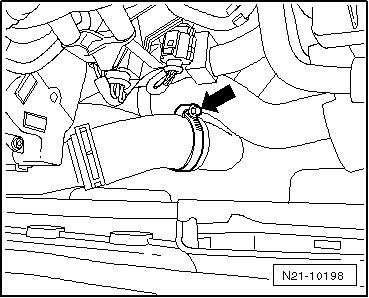

- Loosen the clamp - arrow - and remove the charge air hose.






Installing

Install in the reverse order of removal.
