Charge Air Cooler

Charge Air Cooler

Removing

- Remove the noise insulation. Refer to one of the following:

Passat

CC

- Remove the bumper cover.

- Drain the coolant. Refer to => [ Coolant, Draining and Filling ] Procedures.

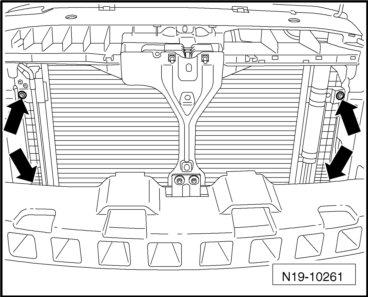

- Remove the right charge air hose - arrows -.






- Remove the fan shroud. Refer to => [ Fan Shroud ] Fan Shroud.

- Remove the radiator. Refer to => [ Radiator ] Radiator.

- Remove the air guides from the lock carrier.

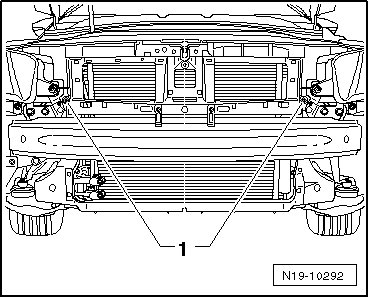

- Remove the charge air cooler mount bolts - 1 -.






• The Air Conditioning A/C) condenser bolts are difficult to access. With the help of a second technician, lift the charge air cooler out of the lower mounts. Now the charge air cooler can be tilted "back and forth" and the bolts are accessible.

- Remove the A/C condenser pipe bolt - arrow - on the right side of the charge air cooler.






- Remove the A/C condenser bolts - arrows - from the charge air cooler.






- Secure the A/C condenser to the lock carrier with cable ties.

- Remove the charge air cooler downward.

Installing

Install in the reverse order of removal. Note the following:

• Hose connections and charge air system hoses must be free of oil and grease before installing. For connector couplings, the seal and sealing surfaces must only be lightly oiled. Refer to => [ Charge Air Hose, Disconnecting and Connecting ] Charge Air Hose, Disconnecting and Connecting.
