Turbocharger Recirculating Valve, Checking







Turbocharger Recirculating Valve, Checking

Special tools, testers and auxiliary items required

Multimeter.

Wiring diagram.

Test requirements

The Engine Control Module (ECM) (J623) fuses OK.






Battery voltage at least 12.5 volts.

All electrical consumers such as, lights and rear window defroster, switched off.

On vehicles with automatic transmission, selector lever in position "P" or "N".

A/C switched off.

Ground connections between engine/transmission/chassis OK.

Ignition switched OFF.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check

Start diagnosis

- Lift the vehicle on a hoist to access the turbocharger recirculating valve connector.

Checking internal resistance

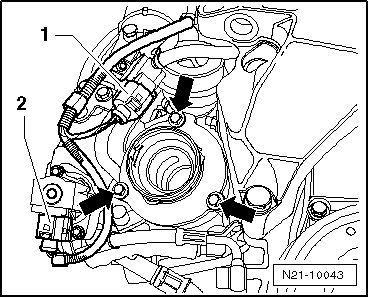

- Disconnect the Turbocharger Recirculating Valve (N249) electrical harness connector- 2 -.






- Using a multimeter, check the Turbocharger Recirculating Valve (N249) terminals 1 to 2 for resistance.






Specified value: 13.6 ohms +/- 5 ohms

If the specified value was Not obtained:

- Replace the Turbocharger Recirculating Valve (N249) Refer to the Repair Information.

If the specified value was obtained:

Checking Voltage supply

- Turn the ignition switch On.

- Using a multimeter, check the Turbocharger Recirculating Valve (N249) electrical harness connector terminal 1 to engine ground.






Specified value: Battery voltage.

- Switch the ignition OFF.

If the specified value was Not obtained:

- Check the wiring from the turbocharger recirculating valve connector to fuse SB 23 for an open, short to ground or high resistance.

- If necessary, repair the faulty wiring connection.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

If the specified value was obtained:

- Check the Turbocharger Recirculating Valve (N249) electrical harness connector terminal 2 to engine ground.






Specified value: Near 3.55 V.

- Switch the ignition OFF.

If the specified values were obtained:

- Replace the Turbocharger Recirculating Valve (N249) Refer to the Repair Information.

If the specified values were Not obtained:

Checking wiring

- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Information.

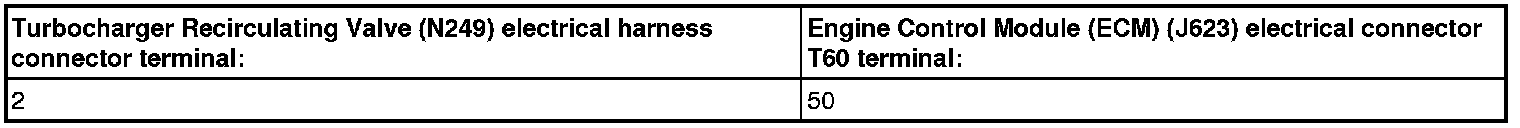

- Using a multimeter, check the Turbocharger Recirculating Valve (N249) electrical harness connector terminal to Engine Control Module (ECM) (J623) electrical harness connector T60 terminal for resistance. Refer to the chart below.











Specified value: 1.5 ohms max.

If the specified value was Not obtained:

- Check the wiring for an open, short or high resistance.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and battery voltage was present:

- Replace the Engine Control Module (ECM) (J623). Refer to the Repair Information.

- Install the engine cover with air filter. Refer to the Repair Information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
