Evaporative Emission Canister Purge Regulator Valve, Checking
Evaporative Emission Canister Purge Regulator Valve, Checking
Special tools, testers and auxiliary items required
• Multimeter.
• Wiring diagram.
Test requirements
• The EVAP Canister Purge Regulator Valve (N80) fuse OK.
• The ignition switched OFF.
• Voltage for the EVAP Canister Purge Regulator Valve (N80) is supplied via the Engine Component Power Supply Relay (J757).
Test procedure
- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check
Start diagnosis
- Remove the engine cover with air filter. Refer to the Repair Information.

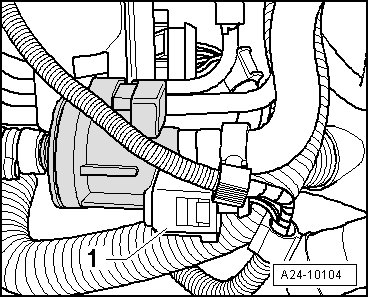

- Disconnect the EVAP Canister Purge Regulator Valve (N80) electrical harness connector - 1 -.
Checking internal resistance
- Using a multimeter, check the EVAP Canister Purge Regulator Valve (N80) terminals 1 and 2 for resistance.
Specified value: 30.0 to 39.0 ohms.
If the specified value was Not obtained:
- Replace the EVAP Canister Purge Regulator Valve (N80).
If the specified value was obtained:
Checking voltage supply
- Using a multimeter, check the electrical harness connector terminal 1 to 2 for voltage.
- Turn ignition switch ON.
Specified value: 10.6 volts +/- 2 volts.
If the specified value was Not obtained:
- Leave the multimeter positive lead on terminal 1 and connect the multimeter negative lead to engine ground.
- Ignition switch ON.
Specified value: Battery voltage.
- Turn ignition switch OFF.
If the specified value was Not obtained:
- Check the wire from the EVAP Canister Purge Regulator Valve (N80) electrical harness connector terminal 1 to fuse for an open or high resistance. Refer to Wiring Diagrams.
- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
- If necessary, repair the wiring connection.
If the specified value was obtained:
Check Ground activation
- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Information.
- Using a multimeter, check the EVAP Canister Purge Regulator Valve (N80) electrical connector terminal 2 to the Engine Control Module (ECM) (J623) electrical connector T60 terminal 35 for an open circuit.
Specified value: 1.5 ohms max.
If the specified value was Not obtained:
- Check the wiring for a short to voltage, high resistance or an open circuit.
- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
- If necessary, repair the wiring connection.
If the specified value was obtained:
- Replace the Engine Control Module (ECM) (J623). Refer to the Repair Information.
- Install the engine cover with air filter. Refer to the Repair Information.
Final procedures
After the repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.
2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.
3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
