Fuse panel B -SB- on E-Box High, engine compartment, on the left side

Fuses

Fuse panel B -SB- on E-Box High, enginecompartment, on the left side




Fuse Colors







-
50 A - red
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7.5 A - brown
5 A - beige
3 A - purple


Note:
• Tightening specifications => Electrical Equipment;
Fuse Panel, Removing and Installing

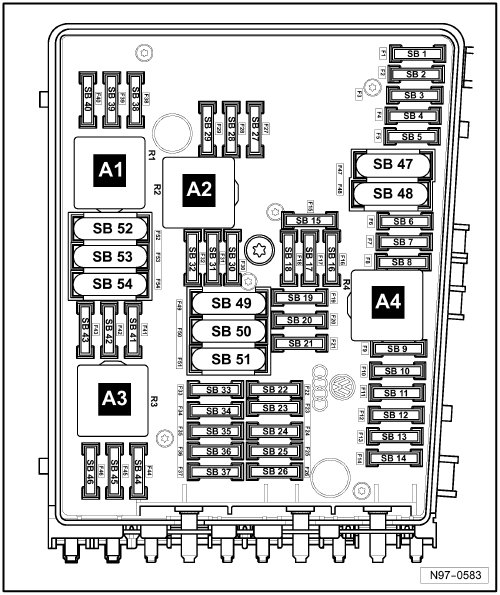

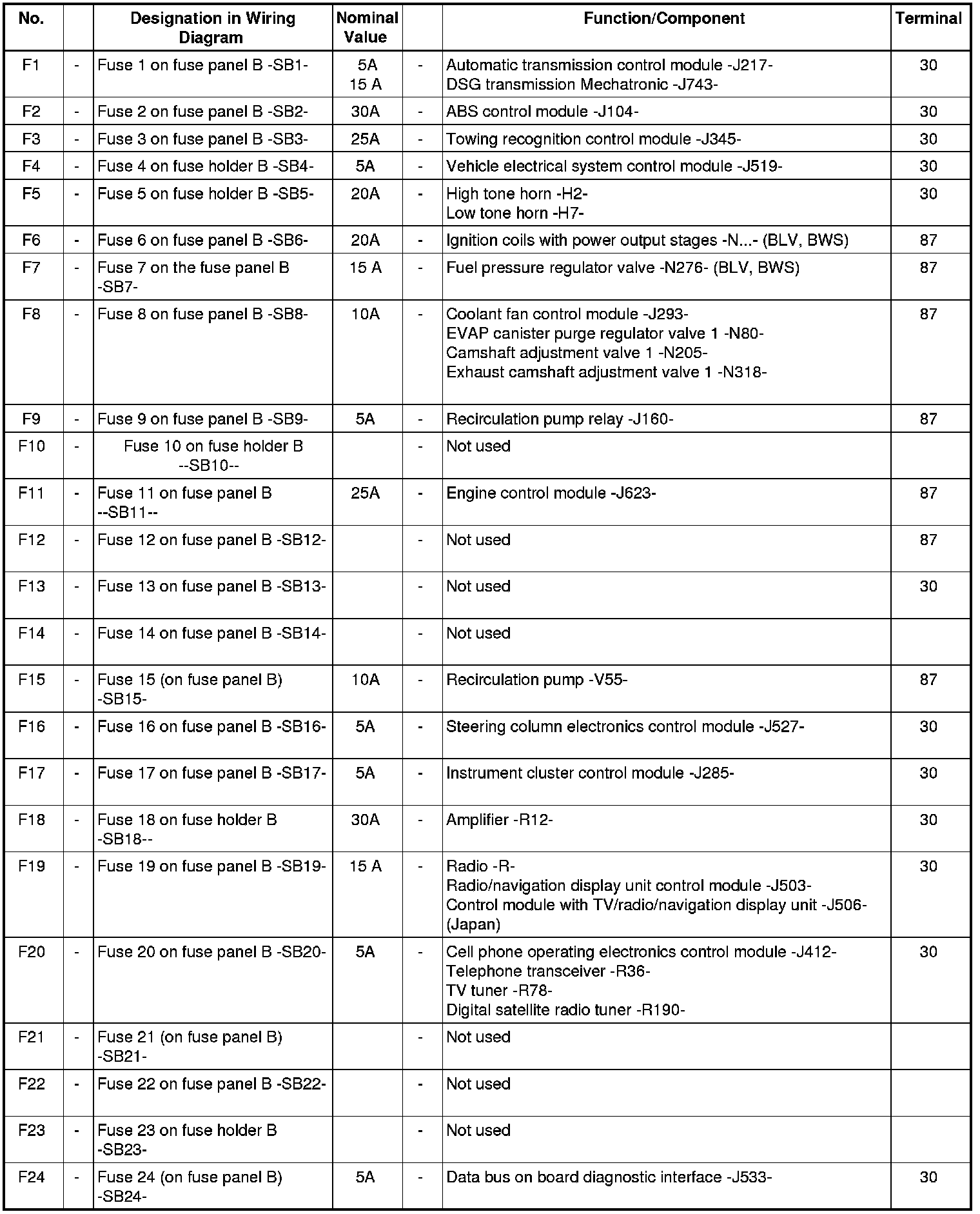

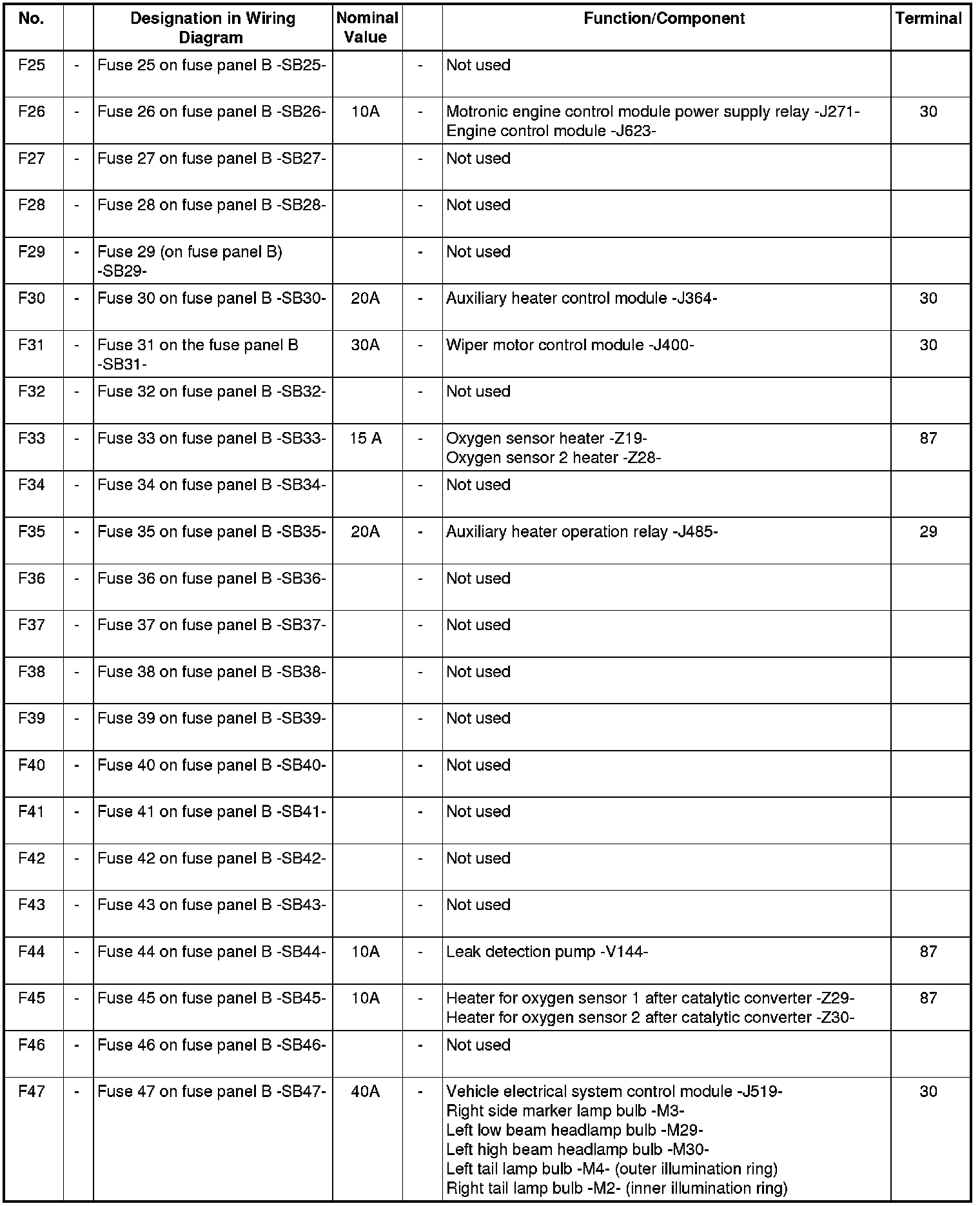

Position of fuses on Electronics Box High, engine compartment, left
