Turn Signal Bulb, Halogen Headlamp

Turn Signal Bulb, Halogen Headlamp

• Function of Left Front Turn Signal Lamp (M5) and Right Front Turn Signal Lamp (M7) can be checked using Vehicle Electrical System Control Module (J519).

Removing

- Turn off the ignition and all electric consumers and turn the key to the 0 position.

• For reasons of clarity, the headlamp is shown in the uninstalled state.

• It is not necessary to remove the headlamp in order to remove and install the turn signal bulbs.

• The following illustrations show replacing the left front turn signal bulb (M5).

• Removing and installing the right front turn signal bulb (M7) is identical.

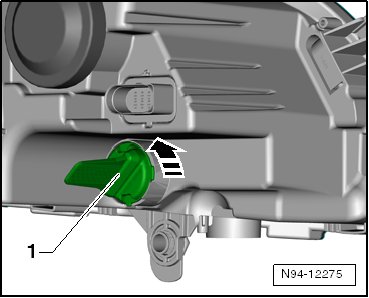

- Turn the holder - 1 - in - direction of arrow - and remove it together with the turn signal bulb from the headlamp housing.

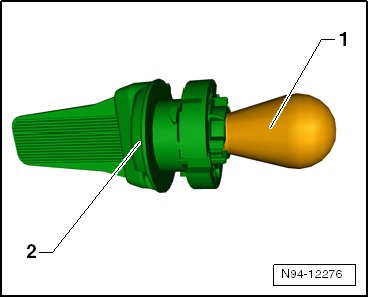

- Press the turn signal bulb - 1 - into the bulb socket on the holder - 2 - and turn it at the same time to the left and then pull it out of the holder.






Front turn signal lamp : 12V, PY21W

Installing

Install in reverse order of removal. Note the following:

- Insert the turn signal bulb and the holder into the headlamp housing and turn it to the right until it locks into place.

- Check headlamp for functions.

- Check the headlamp adjustment and correct it if necessary.
