Headlamp Range Control Positioning Motor, Halogen Headlamp

Headlamp Range Control Positioning Motor, Halogen Headlamp

• The following illustrations show removing and installing the left headlamp range control positioning motor (V48).

• Removing and installing the right headlamp beam adjustment motor (V49) is identical.

Removing

- Turn off the ignition and all electric consumers and turn the key to the 0 position.

- Remove the headlamp. Refer to => [ Headlamp ] Headlamp.

- Remove the cap - 1 - and the cap - 2 -.






- Pull the adjuster - arrow - out of the headlamp housing.






- Turn the headlamp range control positioning motor - 1 - all the way in - direction of arrow -.

- Disconnect the connector - 1 - from the motor.

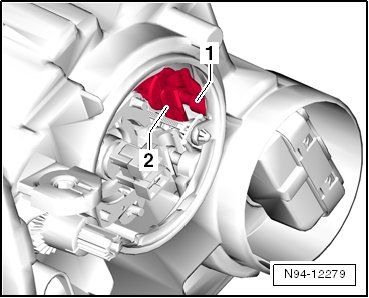

- Tilt the ball head of the control motor - 1 - upward out of the mount in the headlamp and remove the control motor - 2 - from the headlamp housing.






Installing

Install in reverse order of removal. Note the following:

- Install the headlamp range control positioning motor into the headlamp and connect the connector.

- Tilt the ball head of the headlamp beam adjustment motor - 1 - from above into the mount - 2 - while pulling the reflector backward.






- Insert the motor into the mount and turn it all the way to the right until it locks into place.

- Insert the adjuster into the headlamp housing.

• Make sure the caps fit correctly when installing them. It is destroyed by ingress of water into headlamp.

- Install the caps.

- Check headlamp for functions.

- Check the headlamp adjustment and correct it if necessary.
