Tires/Wheels - TPMS Monitor Warning Indicator ON

44 12 02

November 1, 2012

2031249

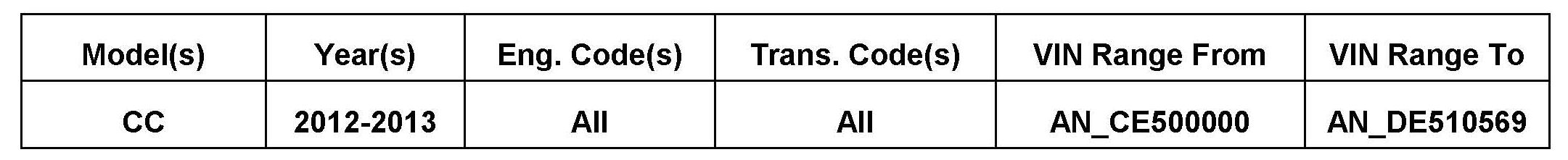

Vehicle Information

Condition

Tire Pressure Monitor Warning Indicator ON

Technical Background

The tire pressure warning indicator illuminates indicating a fault in the Tire Pressure Monitoring System (TPMS) module.

Production Solution

New sensors in production as of AN_DE510569.

Service

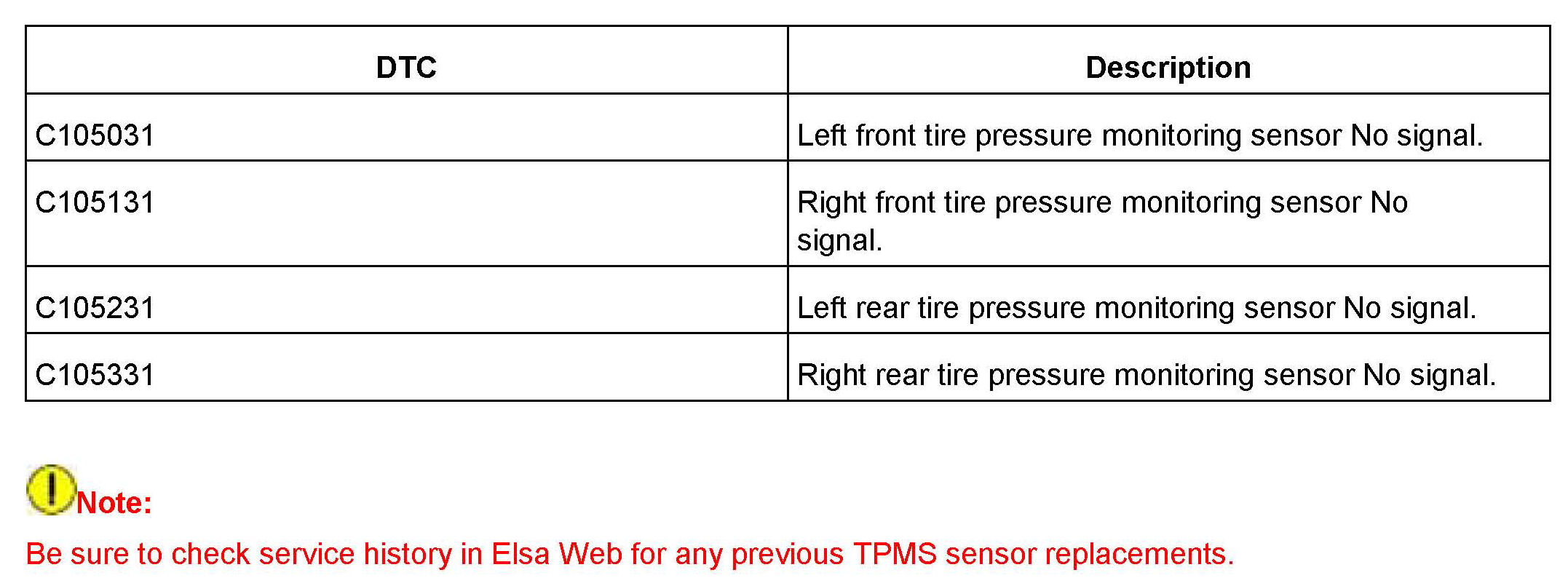

If any of the fault codes are displayed, replace all 4 TPMS sensors. See repair manual group 44, Chassis, Suspension, Wheels, Steering/ Wheels, Tires, Wheel Alignment/ Removal Installation/ Tire Pressure Sensor.

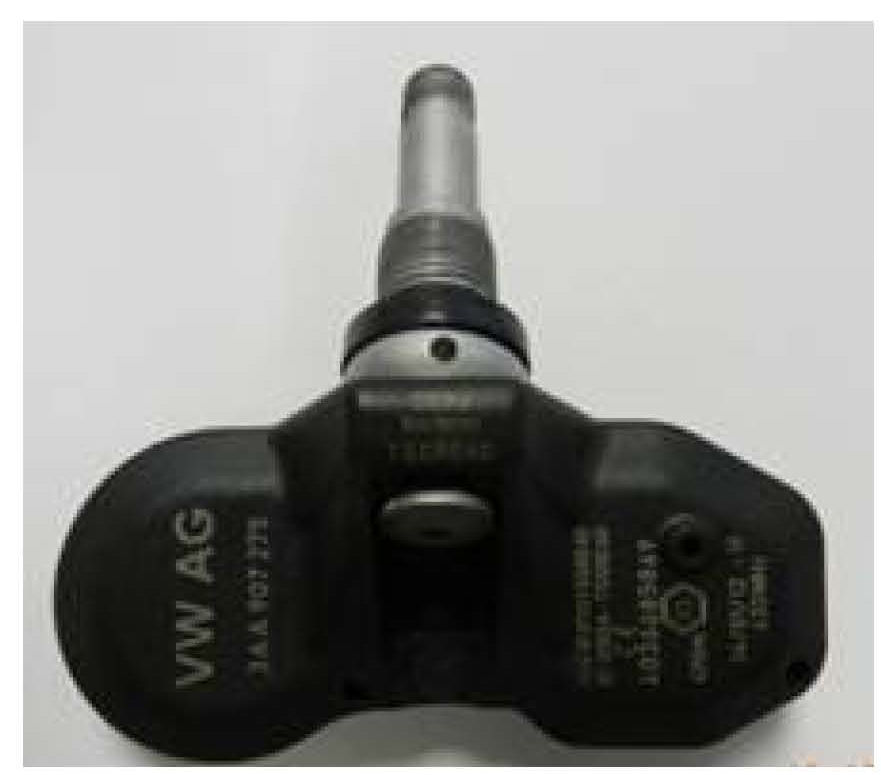

^ Replace original BERU sensors part number 3AA907275.

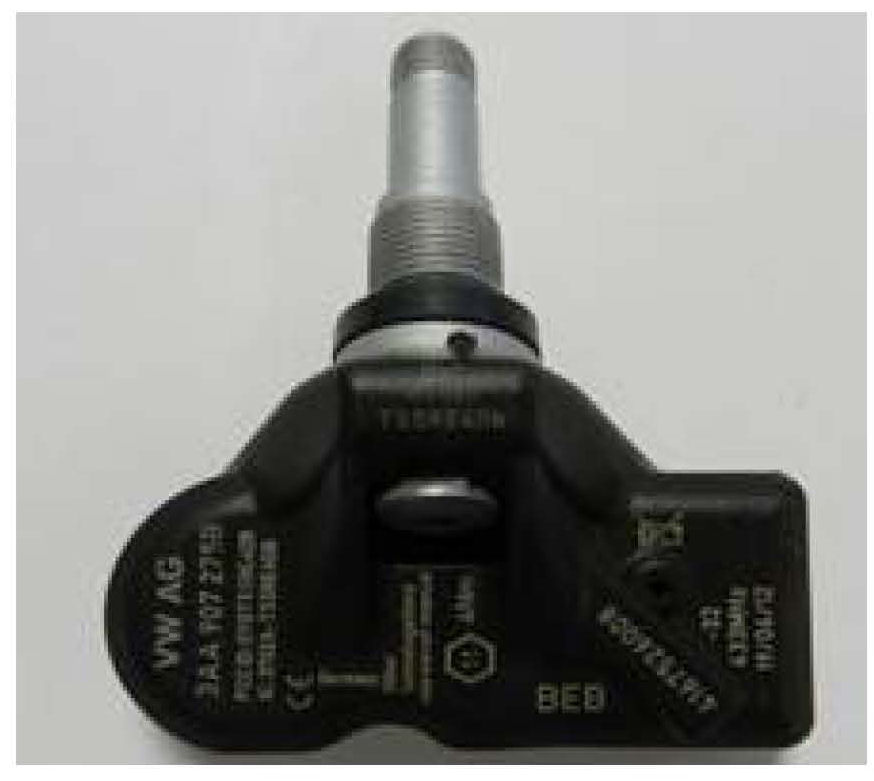

^ Install new HUF sensors 3AA907275B.

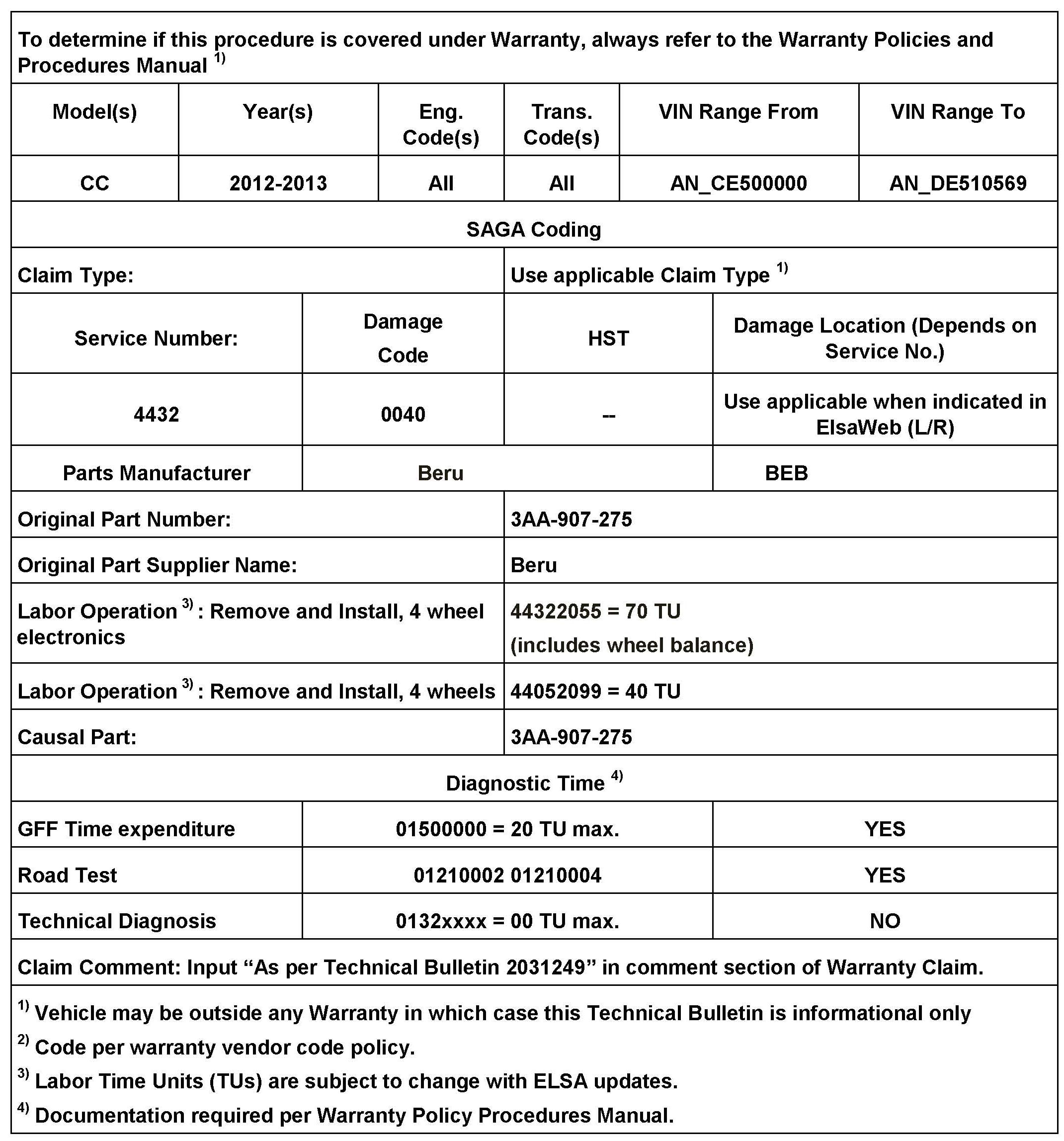

Warranty

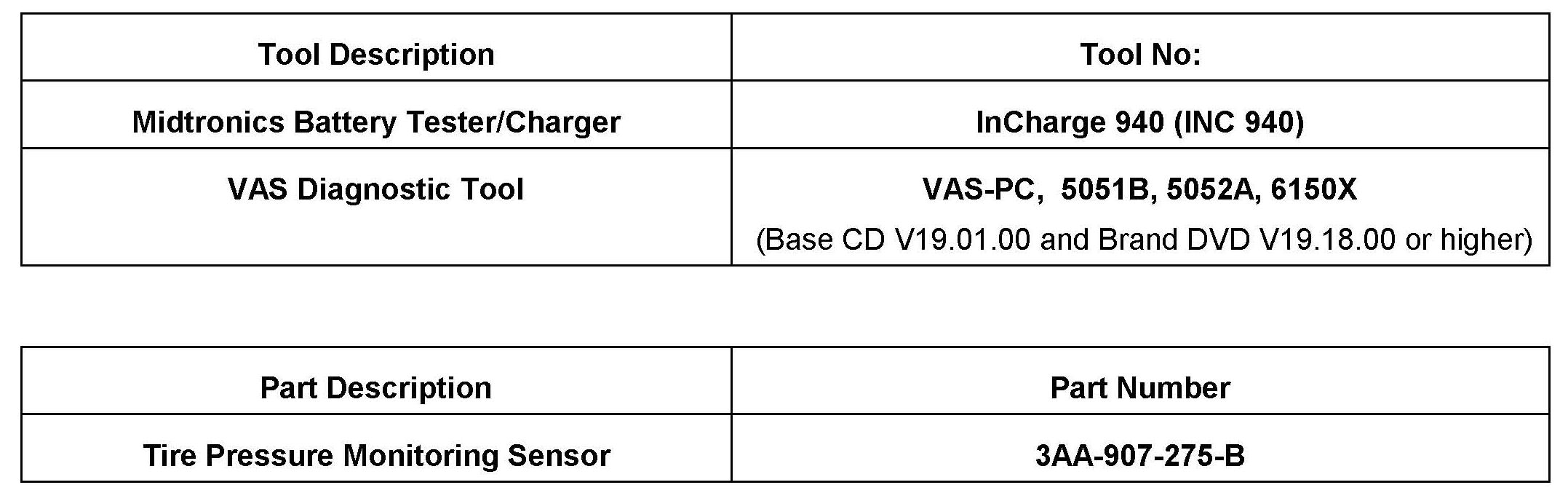

Required Parts and Tools

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
