Glove Compartment Lamp W6 Bulb, Replacing

Glove Compartment Lamp W6 Bulb, Replacing

- Remove the glove compartment lamp. Refer to => [ Glove Compartment Lamp W6 ] Glove Compartment Lamp W6.

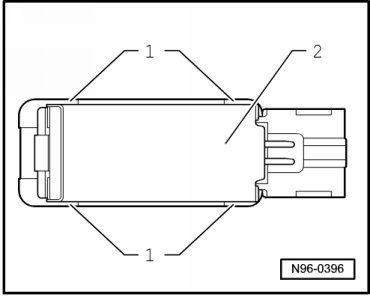

- Disengage retaining tabs - 1 - and remove heat shield - 2 - from diffusion lens of Glove Compartment Lamp.

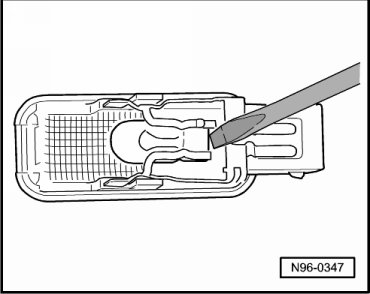

- Carefully pry bulb from socket.






- Glove Compartment Light: 12 V, 5 W bulb
