Front Passenger Airbag Disabled Indicator Lamp K145

Front Passenger Airbag Disabled Indicator Lamp K145

Special tools, testers and auxiliary items required

• Removal Wedge (3409)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( (3409) , screwdriver) will be positioned, using commercially available adhesive tape.

Removing

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

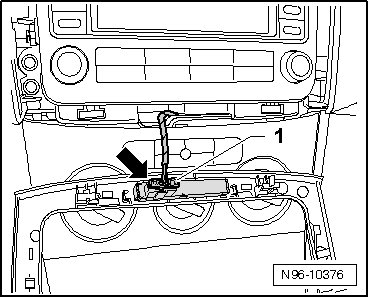

- Carefully pry off panel - 1 - using (VAS 3409) at retaining lugs - arrows -.






- Release and disconnect the connector - arrow - and disconnect the connector plug.






- Disengage the front passenger airbag disabled indicator lamp - arrow - and remove it.

Installing

Install in reverse order of removal.
