Instrument Cluster

Instrument Cluster

• Prior to replacing instrument cluster, perform work sequence "Instrument cluster, adaptation/replacing" in order to read out the data stored in the control module. Refer to => [ Instrument Cluster ] Instrument Cluster.

Removing

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

- Using the height adjuster, move the steering wheel to the lowest position.

- Remove the trim on the driver side.

- Remove the instrument cluster trim.

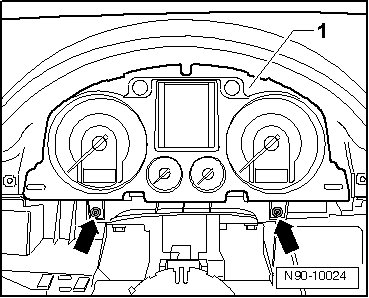

- Remove the bolts - arrows - from the instrument cluster - 1 -.






- Pull the instrument cluster back out of the instrument panel while being careful of the connected wires.

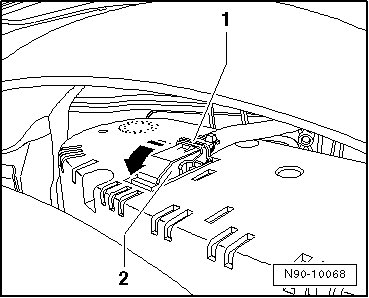

- Tilt the bracket - 1 - in the - direction of the arrow - and disconnect the connector - 2 -.






Installing

Install in reverse order of removal.

- After installing, test the functions of the instrument cluster.
