Analog Clock Mount, CC from MY 2010

Analog Clock Mount, CC from MY 2010

Removing

- Switch off the ignition.

- Remove the Infotainment trim, CC from MY 2010, refer to => [ Infotainment Trim, CC from MY 2010 ] Infotainment Trim, CC from MY 2010.

- Remove the instrument cluster trim, CC from MY 2010, refer to => [ Instrument Cluster Trim, CC from MY 2010 ] Instrument Cluster Trim, CC from MY 2010.

- Remove the front passenger side instrument panel trim, refer to => [ Front Passenger Side Instrument Panel Trim, CC from MY 2010 ] Front Passenger Side Instrument Panel Trim, CC from MY 2010.

- Remove the analog clock, CC from MY 2010, refer to => [ Analog Clock, CC from MY 2010 ] Analog Clock, CC from MY 2010.

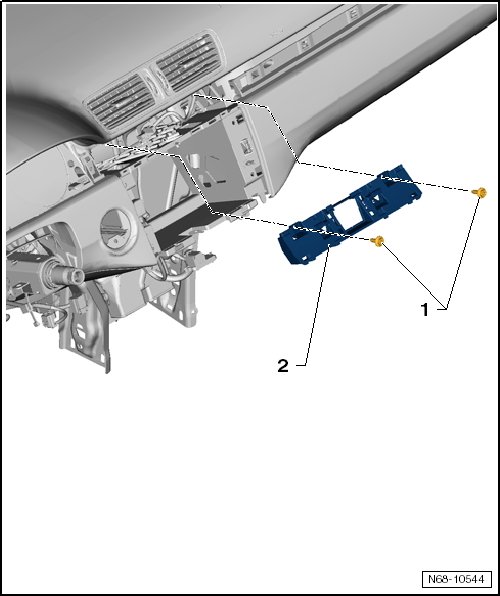

• To provide a better overview, the adjacent components are only partially shown in the illustration.

- Remove the two bolts - 1 - (1.5 Nm).

- Remove the analog clock mount - 2 - from the instrument panel.






Installing

- Install in reverse order of removal.
