Passenger Compartment Forced Air Ventilation, Checking

Passenger Compartment Forced Air Ventilation, Checking

• The stale air escapes through the vent openings in the luggage compartment trim.

• If the ventilation is to function properly, the ventilation openings must not be covered.

• The ventilation frames are located in the rear side panels, behind the bumper.

Checking

• The ventilation can be checked through the luggage compartment.

• Depending on the vehicle equipment level, it may be necessary to remove additional components.

- Remove the side trim panels inside the luggage compartment.

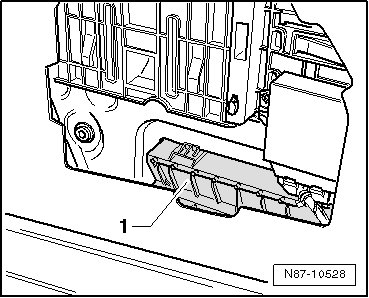

- The sealing lips - 1 - in the ventilation frame on both sides of vehicle must be free to move and close automatically.
