Right Vent Temperature Sensor G151

Right Vent Temperature Sensor G151

Removing

- Remove the glove compartment.

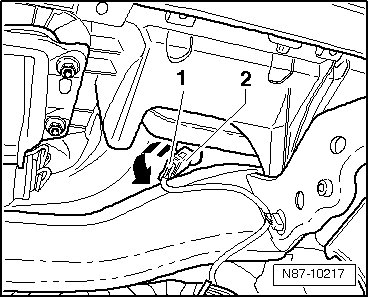

- Disconnect the - 1 - right vent temperature sensor connector.






- Turn the right vent temperature sensor - 2 -90° and remove it from the air guide channel.+

Installing

- Install in reverse order of removal.
