Heater, Disassembling and Assembling

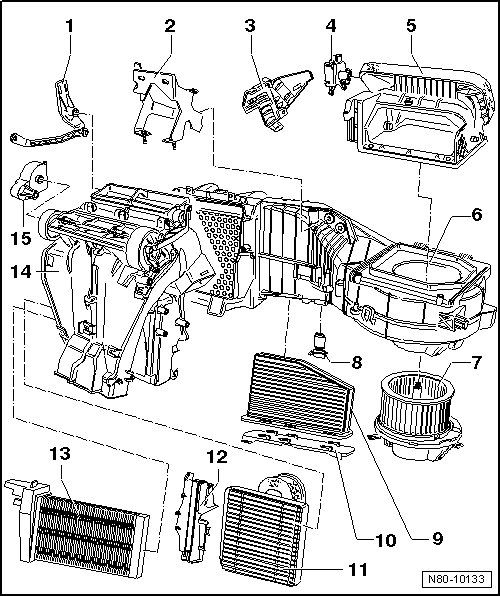

Heater, Disassembling and Assembling






1 Adjusting Unit for Temperature Door

• Removing and installing, refer to => [ Air Distribution Door Adjuster ] Air Distribution Door Adjuster.

2 Bracket

3 Cover

4 Fresh/Recirculated Air Door Motor (V154)

• Checking: use the Vehicle Diagnostic Tester

• Removing and installing, refer to => [ Fresh/Recirculated Air Door Motor V154 ] Fresh/Recirculated Air Door Motor V154.

• Replacing: initiate the basic setting using the Vehicle Diagnostic Tester. Refer to => [ Climatronic Components, Checking and Adjusting ] Climatronic Components, Checking and Adjusting.

5 Housing for Air Entry

• With fresh/recirculation air door

6 Heater

7 Fresh Air Blower (V2)

• Removing and installing, refer to => [ Fresh Air Blower V2 ] Service and Repair.

8 Fresh Air Blower Series Resistor With Fuse (N24)

• Removing and installing, refer to => [ Fresh Air Blower Series Resistor with Fuse N24 ] Service and Repair.

9 Dust and Pollen Filter

• Removing and installing, refer to => [ Dust and Pollen Filter ] Dust and Pollen Filter.

10 Cover

• For the dust and pollen filter

11 Heater Core

• Removing and installing, refer to => [ Heater Core ] Heater Core.

12 Heater Core Trim

13 Auxiliary Heater Heating Element (Z35)

• Not applicable to the US or Canada

14 Junction Box

15 Adjuster for Air Distribution Doors

• Removing and installing, refer to => [ Air Distribution Door Adjuster ] Air Distribution Door Adjuster.
