Evaporator Drain Tube: Testing and Inspection

Condensation Drain Hose, Checking

• The valve is located in the front right driver side compartment behind the underbody trim panel.

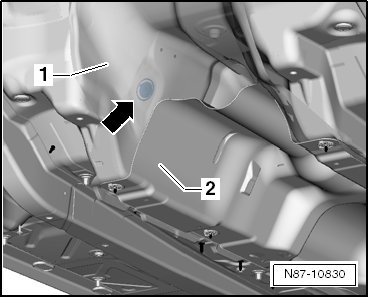

- Loosen the underbody trim panel - 1 and 2 - in the valve area.






- Check valve - arrow -:

• It should not be plugged with wax, underbody sealant, or debris.

• It must open and close properly.

- Secure the underbody trim panel.
