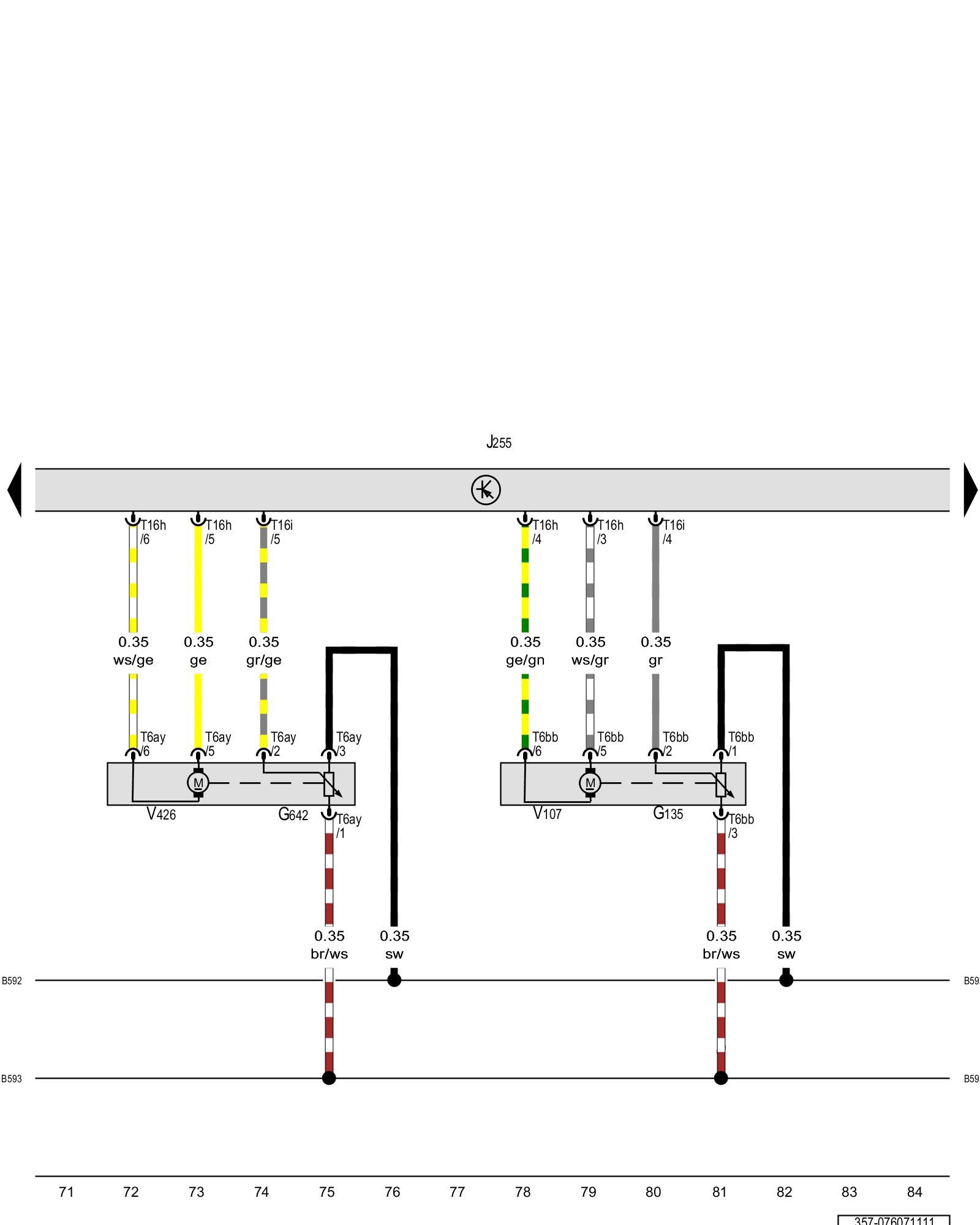

Diagram 76/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Defroster door motor position sensor, Front air distribution door motor position sensor, Climatronic control module, Defroster door motor, Front air distribution door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G135 - Defroster door motor position sensor Climatronic (Automatic Climate Control) System Overview Defroster Door Motor -V107- /Position Sensor -G135-

G642 - Front air distribution door motor position sensor Climatronic (Automatic Climate Control) System Overview Front air Distribution Door Motor -V426- / Position Sensor -G642-

J255 - Climatronic control module Control Modules in Interior Climatronic (Automatic Climate Control) Control Module -J255-

T6ay - 6-pin connector

T6bb - 6-pin connector

T16h - 16-pin connector

T16i - 16-pin connector

V107 - Defroster door motor Climatronic (Automatic Climate Control) System Overview Defroster Door Motor -V107- /Position Sensor -G135-

V426 - Front air distribution door motor Climatronic (Automatic Climate Control) System Overview Front air Distribution Door Motor -V426- / Position Sensor -G642-

(B592) - Connection 1 (in Climatronic wiring harness)

(B593) - Connection 2 (in Climatronic wiring harness)
