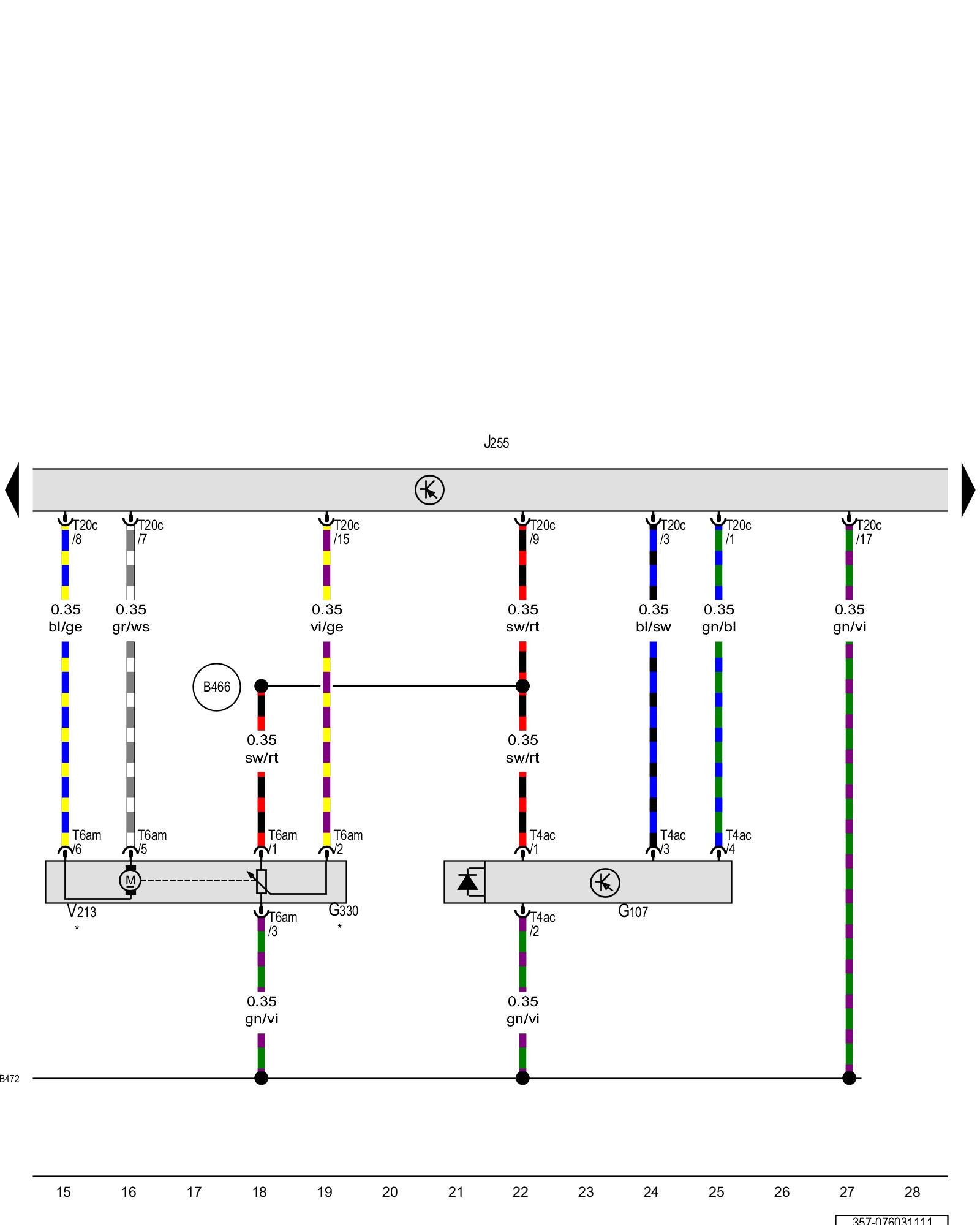

Diagram 76/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sunlight photo sensor, Indirect ventilation door motor position sensor, Climatronic control module, Indirect ventilation door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G107 - Sunlight photo sensor Climatronic (Automatic Climate Control) System Overview Diagrams

G330 - Indirect ventilation door motor position sensor Climatronic (Automatic Climate Control) System Overview

J255 - Climatronic control module Control Modules in Interior Climatronic (Automatic Climate Control) Control Module -J255-

T4ac - 4-pin connector

T6am - 6-pin connector

T20c - 20-pin connector

V213 - Indirect ventilation door motor Climatronic (Automatic Climate Control) System Overview

(B466) - Connection 2 (in main wiring harness)

(B472) - Connection 8 (in main wiring harness)

* - Depending on equipment

Previous Diagram 76/2 (Tracks 1-14)

Next Diagram 76/4 (Tracks 29-42)
