Display and Control Unit Overview, Passat CC from MY 09 and CC from MY 10 though 04 November 2011

Display and Control Unit Overview, Passat CC from MY 09 and CC from MY 10 though 04 November 2011

• Any function selected on the control will appear in the radio display.

• The duration of the display can be set to 3, 5 or 10 seconds using the Radio Setup under System/Air conditioning display.

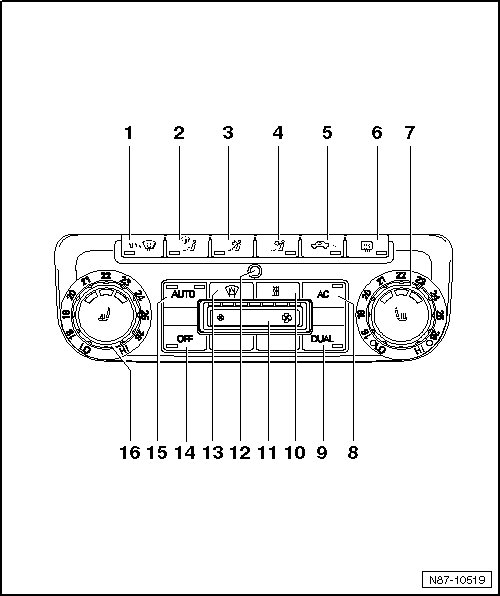

1 Windshield Defroster Button

2 Button - Upper Air Distribution

3 Button - Center Air Distribution

4 Button - Lower Air Distribution

5 Recirculating Air Mode Or Automatic Recirculating Air Mode Button

• Press button for recirculating air function to prevent polluted air from entering interior.

• Press the recirculation button repeatedly to activate the automatic recirculation mode.

• Air quality sensor (G238) function, refer to => [ Air Quality Sensor G238 Function ] Description and Operation.

6 Push Button For Rear Window Defroster

7 Interior Temperature Control With Button For Right Seat Heating

• Setting HI max.: the air flow is automatically directed into the driver and front passenger footwells.

8 AC Button

• Press the AC button to turn the A/C on or off.

• When the light in the button is on, the air conditioner compressor is switched on.

9 DUAL Button

• If the indicator light in the button comes on, different temperatures can be set for left and right.

• When the Dual button is pressed (the indicator lamp turns off), then the temperature setting for the driver seat will also apply to the front passenger seat.

10 Immediate Heating Button (E537)

• Does not apply to the USA or Canada

11 Blower Regulator

12 Interior Temperature Sensor

13 Windshield Defroster Button

• Pressing the button switches on the windshield defroster.

• The windshield defroster stays on for a few minutes and then automatically switches off.

14 A/C OFF Button

• Switching the Climatronic on and off

15 AUTO Button

• By pressing the AUTO button, Climatronic maintains the selected vehicle interior temperature completely automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.

• The right LED in the button turns on by pushing the button continually. "AUTO" runs at a higher blower speed.

• The Climatronic automatically changes to dual mode if the AUTO button is pushed for longer than 3 seconds.

16 Interior Temperature Control With Button For Left Seat Heating

• Setting HI max.: the air flow is automatically directed into the driver and front passenger footwells.
