Belt Pulley, Zexel

Belt Pulley, Zexel

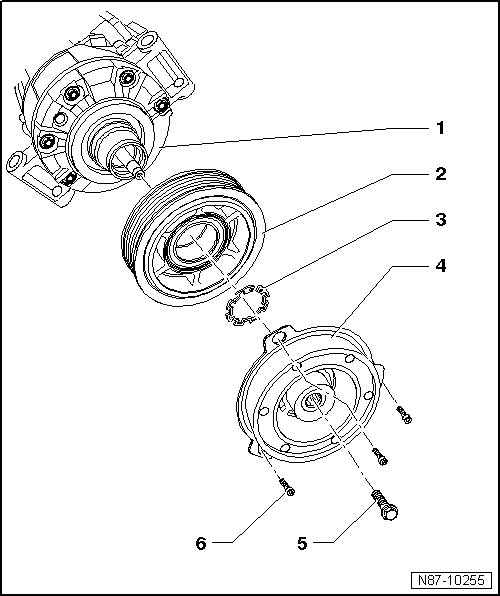

1 A/C Compressor

• Zexel

• Clean the flange before mounting the ribbed belt pulley.

2 Ribbed Belt Pulley

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

3 Circlip

• Replace

• Install on the proper side, the side with beveled insertion edge faces away from A/C compressor (install flat side facing compressor).

4 Overload Protection

• Bolted with to the ribbed belt pulley.

• Keeps the ribbed belt pulley from turning when the A/C compressor gets blocked.

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

5 Hex Bolt

• 20 Nm

• Replace

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

• Clean the thread on the A/C compressor shaft of old locking compound before installing.

• Install the bolt with locking compound (D 000 600 A2).

6 Hex Socket Head Bolt

• 5 Nm

• Quantity: 3

Remove The Ribbed Belt Pulley

• It is not necessary to remove the A/C compressor when replacing the ribbed belt pulley.

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

- Remove the ribbed belt.

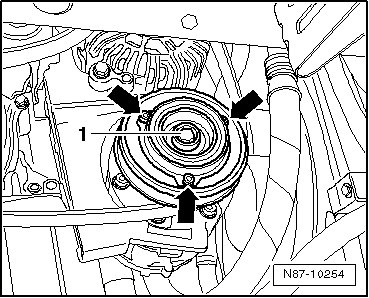

- Remove the bolts - arrows -.






- Remove the bolt - 1 -.

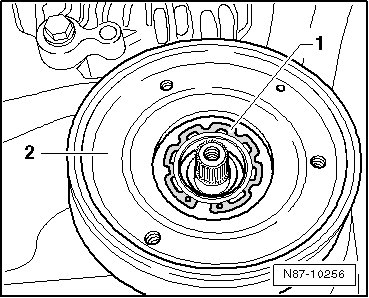

- Remove the locking ring - 1 -.






- Remove the ribbed belt pulley - 2 - from the A/C compressor.

Installing

Install in reverse order, paying attention to the following:

• Clean the thread on the A/C compressor shaft of old locking compound before installing.

• Clean the A/C compressor flange before mounting the ribbed belt pulley.

• Install the circlip on the proper side, the side with beveled insertion edge faces away from A/C compressor (install flat side facing compressor).

• Replace the hex collar bolt - 5 -.
