Belt Pulley, Sanden

Belt Pulley, Sanden

• It is not necessary to remove the A/C compressor when replacing the ribbed belt pulley.

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

• Remove the ribbed belt.

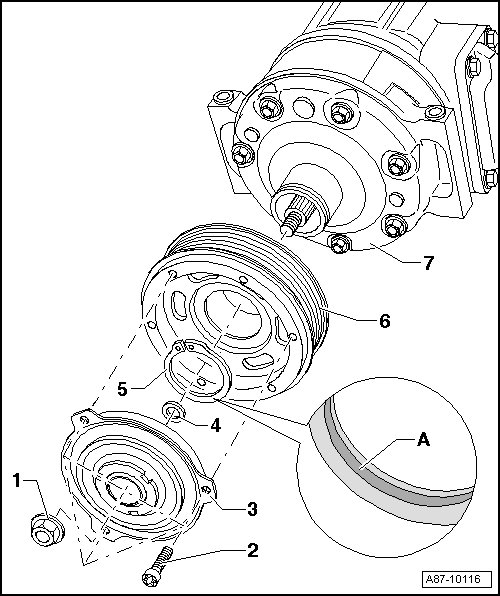

1 Nut

• 25 Nm

• Replace

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

• Install the hex nuts with locking compound (D 000 600 A2).

2 Screw

• 4.5 Nm

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

• Quantity: 3

3 Overload Protection

• Bolted with to the ribbed belt pulley.

• Keeps the ribbed belt pulley from turning when the A/C compressor gets blocked.

• Loosen and tighten the bolt on the ribbed belt pulley using a commercially available strap wrench (with fabric tape).

4 Washer

5 Circlip

• Replace

• Install on proper side, beveled insertion edge - A - faces away from A/C compressor (install flat side facing the A/C compressor)

6 Ribbed Belt Pulley

• Clean A/C compressor flange before sliding on pulley.

7 A/C Compressor

• Sanden

• Clean the flange before mounting the ribbed belt pulley.
