Belt Pulley, Denso

Belt Pulley, Denso

Removing

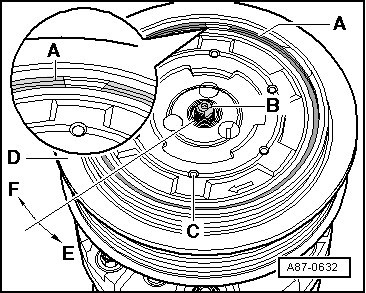

- Carefully remove the cap with locking ring- A - using a small screw driver or needle nose pliers for example. Make sure that the ribbed belt pulley is not damaged in the process.






- Turn the drive plate - C - with the ribbed belt pulley - D - using a commercially available strap wrench in - direction of arrow E - and loosen the input shaft - B - (35 ± 5 Nm) in the - direction of arrow F -.

- Remove drive plate - C -.

- Remove locking ring - A -.






- Remove the ribbed belt pulley - B -.

Installing

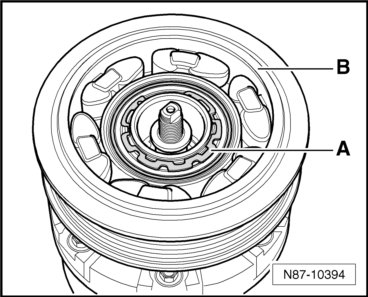

• Remove locking ring - A -.

• Clean A/C compressor flange before sliding on ribbed belt pulley.

• When installing circlips - A -, note that it cannot be bent open more than is necessary for installation.






- Install the ribbed belt pulley - B -.

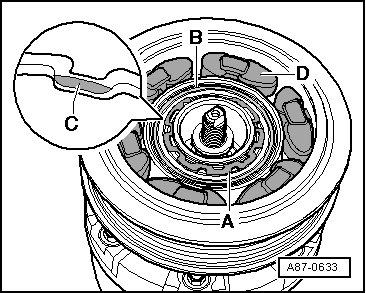

- Insert circlip - A - on correct side, the side with beveled insertion edge - C - faces away from A/C compressor (install flat side facing A/C compressor).

- Insert rubber elements - D - in belt pulley - B - according to illustration.

• When installing drive plate, coat the rubber element - D - lightly with, for example, tire mounting paste or soap solution (as sliding compound).

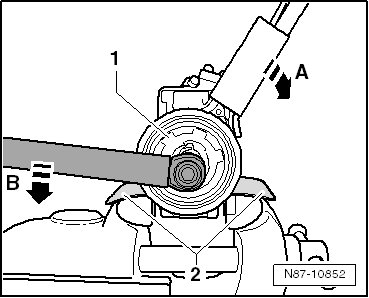

• Install protective jaws - 2 - between vice and the A/C compressor in order to avoid damaging the A/C compressor mount.

- Position the drive plate- C - between the rubber elements until they touch the A/C compressor shaft- B -.






- Secure the drive plate- 1 - with a commercially available strap wrench in the - direction of the arrow A - and tighten the input shaft with a torque wrench in the - direction of the arrow B - (35 ± 5 Nm).






- Install cap with locking ring.
