Dust and Pollen Filter (Basic )

Dust and Pollen Filter

Removal

There are different versions of the dust and pollen filter (without and with filter insert with activated charcoal).

- Remove the partition from the heater.

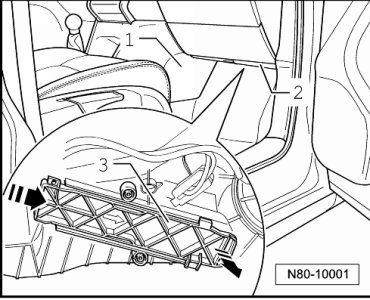

Removing heater partition



- Remove the plastic screws -2- and the partition -1-.







- Release cover -3- in direction of arrow.

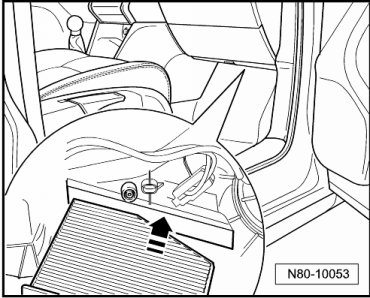

- Remove dust and pollen filter downward out of heater.

Installation





- Note installation position of dust and pollen filter.
- Install in reverse order of removal.
