Engine Mount: Service and Repair

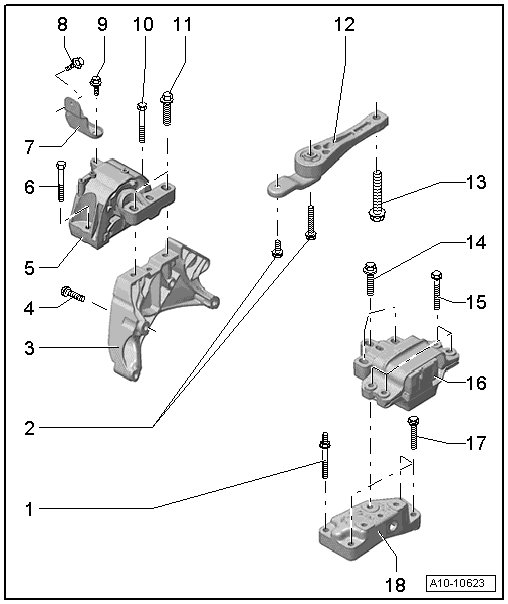

Engine/Transmission Mount Overview






1 Bolt

• Tightening specifications, refer to one of the following:

GTI, Eos, Passat and CC with a Direct Shift Gearbox (DSG(R)).

GTI, Eos, Passat and CC with a manual transmission.

Passat and CC with a automatic transmission.

• Transmission mount bracket to transmission.

2 Bolt

• Pendulum support to transmission.

3 Engine Mount Bracket

4 Bolt

• 40 Nm + an additional 180° (1/2) turn.

• Always replace.

• Engine mount bracket to engine.

5 Engine Mount

6 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Engine mount to body.

7 Support

8 Bolt

• 20 Nm + an additional 90° (1/4) turn.

• Always replace.

• Support to engine mount.

9 Bolt

• 20 Nm + an additional 90° (1/4) turn.

• Always replace.

• Support to body.

10 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Engine mount to body.

11 Bolt

• 60 Nm + an additional 90° (1/4) turn.

• Always replace.

• Engine mount to engine mount bracket.

12 Pendulum Support

13 Bolt

• 100 Nm + an additional 90° (1/4) turn.

• Always replace.

• First, secure the pendulum support to the transmission and then to the subframe.

• Pendulum support to subframe.

14 Bolt

• 60 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount to transmission mount bracket.

15 Bolt

• 40 Nm + an additional 90° (1/4) turn.

• Always replace.

• Transmission mount to body.

16 Transmission Mount

• The illustration shows the DSG(R) version.

17 Bolt

• Tightening specification, refer to one of the following:

GTI, Eos, Passat and CC with a Direct Shift Gearbox (DSG(R)).

GTI, Eos, Passat and CC with a manual transmission.

Passat and CC with a automatic transmission.

• Transmission mount bracket to transmission.

18 Transmission Mount Bracket
