Balance Shaft Timing Chain Overview

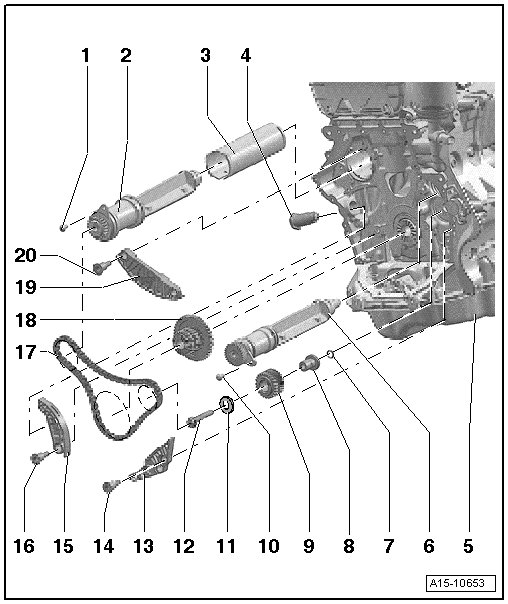

Balance Shaft Timing Chain Overview
1 Bolt
• 9 Nm
2 Balance Shaft
• Exhaust side
• Replace after removing.
• Lubricate the bearing with engine oil.
• Removing and installing, refer to => [ Balance Shaft, Exhaust Side ] Balance Shaft, Exhaust Side.
3 Balance Shaft Pipe
4 Chain Tensioner
• 85 Nm
5 Cylinder Block
6 Balance Shaft
• Intake side.
• Replace after removing.
• Lubricate the bearing with engine oil.
• Removing and installing, refer to => [ Balance Shaft, Intake Side ] Balance Shaft, Intake Side.
7 O-ring
• Lubricate with engine oil.
8 Bearing Pin
• Lubricate with engine oil.
9 Intermediate Shaft Sprocket
• For the balance shaft.
• The intermediate shaft sprocket must be replaced if the bolt is loosened.
10 Bolt
• 9 Nm
11 Washer
12 Bolt
• The intermediate shaft sprocket must be replaced if the bolt is loosened.
13 Guide Rail
• For the timing chain.
14 Guide Pin
• 20 Nm
15 Tensioning Rail
• For the timing chain.
16 Guide Pin
• 20 Nm
17 Timing Chain
• Removing and installing, refer to => [ Balance Shaft Timing Chain ] Balance Shaft Timing Chain.
18 Chain Sprocket
• Installed position, refer to => [ Crankshaft Chain Sprocket Installed Position ] Camshaft Timing Chain Overview.
19 Guide Rail
• For the balance shaft timing chain.
20 Guide Pin
• 20 Nm

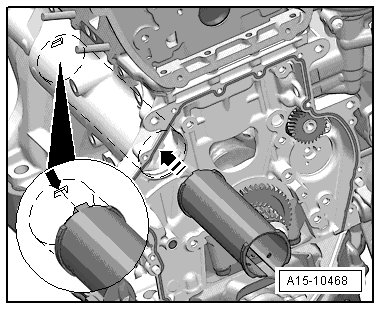

Balance Shaft Tube Installed Position
• The pin from the balance shaft tube must fit into the groove - arrow -

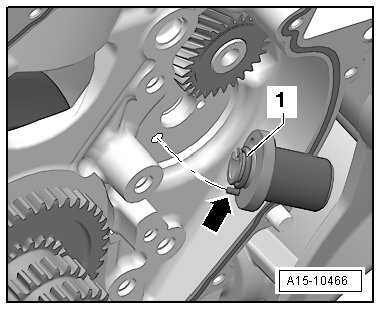

Bearing Pin Installed Position
• Replace and lubricate the O-ring - 1 -
• The pin - arrow - on the bearing pin must engage in the hole in the cylinder block.
• Lubricate the bearing pin
Intermediate Sprocket Bolt Tightening Sequence
Always replace the intermediate shaft sprocket. Otherwise the backlash will not adjust itself and it could result in engine damage. The new intermediate shaft sprocket has an anti-friction coating that wears off after a short period of use, which automatically adjusts the backlash.
- Tighten the bolt as follows:
- Tighten the bolt to 10 Nm.
- Turn the sprocket.
The sprocket may not have any play; if so, loosen and retighten again.
- Tighten the bolt to 30 Nm.
- Tighten the bolt an additional 90° (1/4) turn.
