Camshaft: Testing and Inspection

Camshaft Axial Clearance, Checking

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Dial Gauge 0-10 mm (VAS 6079)

Sequence






- Perform the measurement with the cylinder head cover removed.

- Place the camshaft to be checked in the cylinder head.

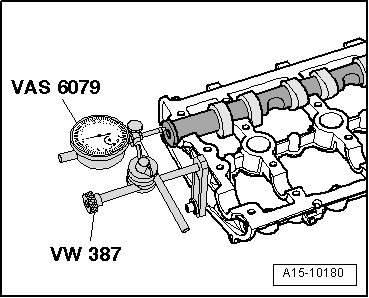

- Secure the dial gauge 0-10 mm (VAS 6079) to the cylinder head using the dial gauge holder (VW 387).

- Press the camshaft against the dial gauge by hand.

- Set the dial gauge to "0".

- Press the camshaft off the dial gauge and read the value:

• Axial clearance: 0.05 to 0.17 mm.
