Coolant Fan V7 and Coolant Fan 2 V177

Coolant Fan V7 and Coolant Fan 2 V177

Removing

- Remove the fan shroud. Refer to => [ Fan Shroud ] Fan Shroud.

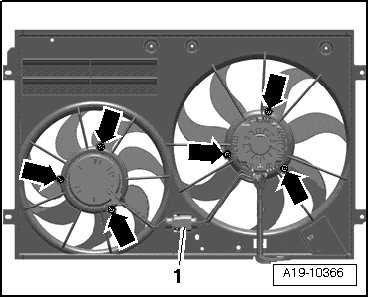

- Disconnect the connector - 1 -.






- Free up the electrical wires.

- Remove the nuts - arrows - and the coolant fan(s).

Installing

Install in the reverse order of removal.

• Tightening specifications, refer to => [ Radiator, Fan Shroud and Fan Overview ] Radiator, Fan Shroud and Fan Overview.
