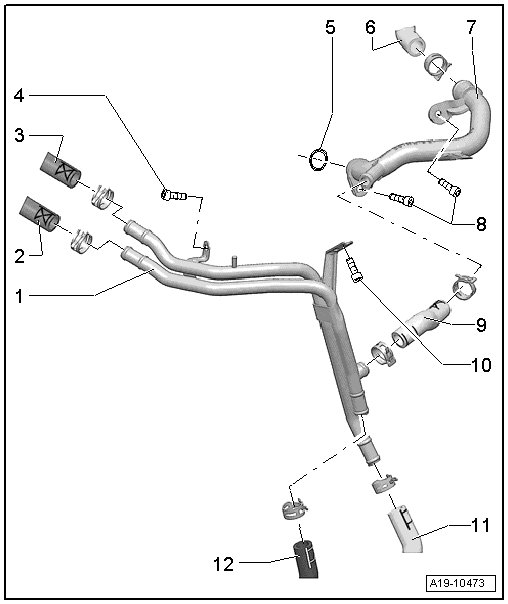

Coolant Pipes Overview

Coolant Pipes Overview






1 Front Coolant Pipes

• Removing and installing, refer to => [ Front Coolant Pipes ] Front Coolant Pipes.

2 Coolant Hose

• From the turbocharger.

3 Coolant Hose

• To the coolant expansion tank.

4 Bolt

• 3.5 Nm

5 O-ring

• Always replace.

6 Coolant Hose

• To the heater core.

7 Small Coolant Pipe

• Removing and installing, refer to => [ Small Coolant Pipe ] Small Coolant Pipe.

8 Bolt

• 9 Nm

9 Coolant Hose

10 Bolt

• 3.5 Nm

11 Coolant Hose

• From the after-run coolant pump.

12 Coolant Hose

• To the after-run coolant pump.
