After-Run Coolant Pump Overview

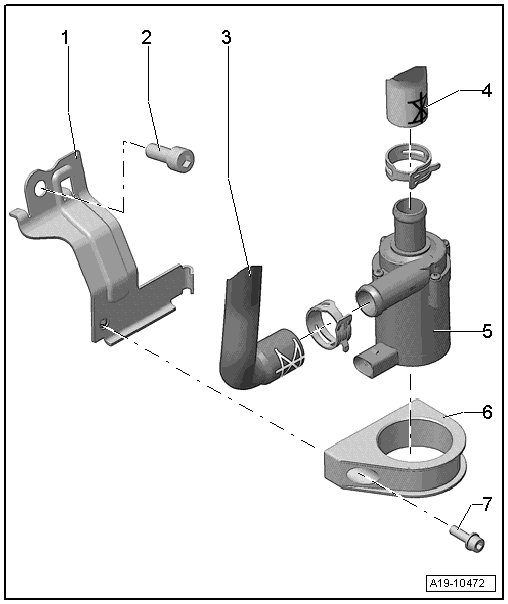

After-Run Coolant Pump Overview






1 Bracket

2 Bolt

• 40 Nm

3 Coolant Hose

4 Coolant Hose

5 After-Run Coolant Pump (V51)

6 Bracket

7 Bolt

• 8 Nm
