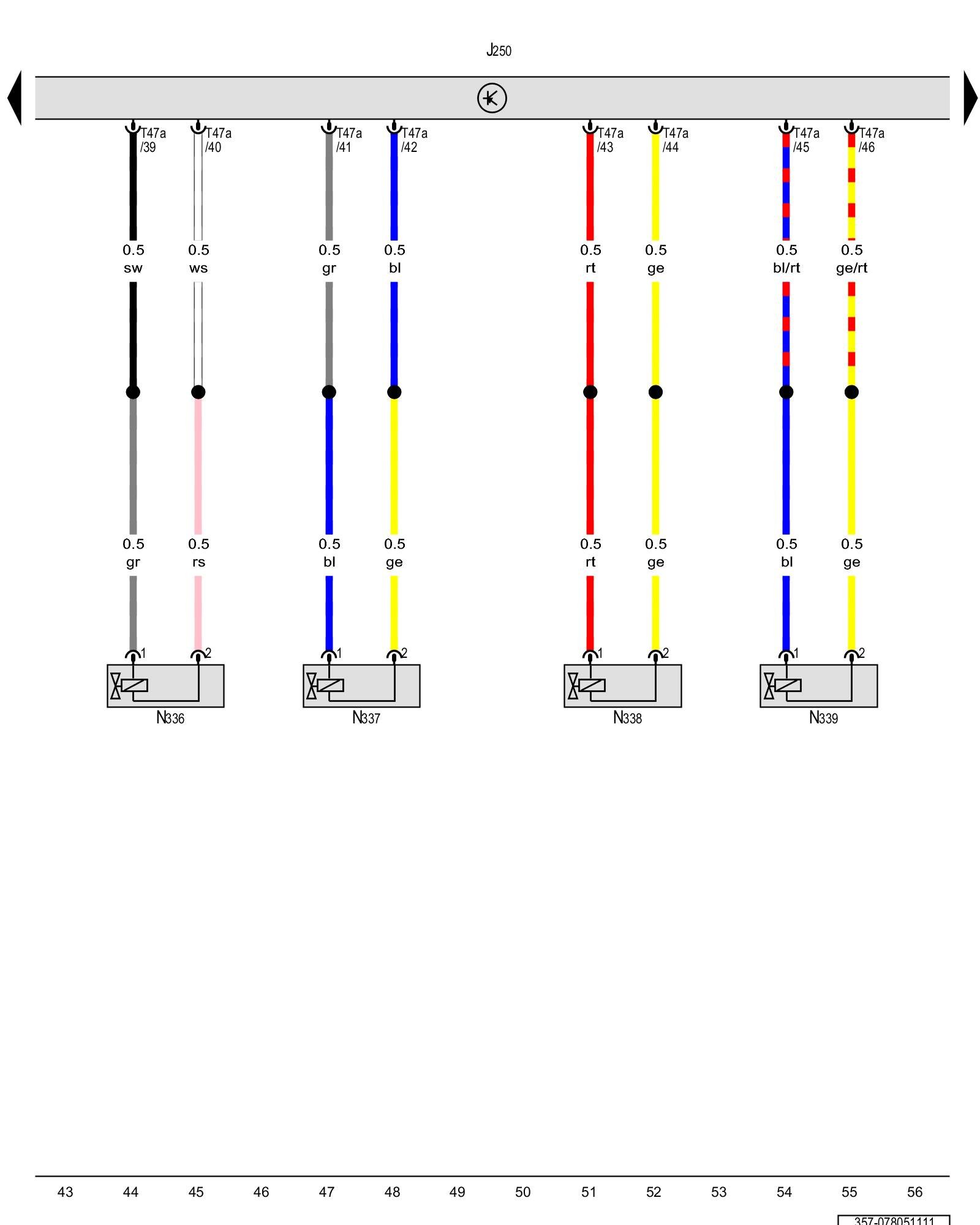

Diagram 78/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Electronic damping control module, Left front damping adjustment valve, Right front damping adjustment valve, Left rear damping adjustment valve, Right rear damping adjustment valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J250 - Electronic damping control module Component Locations Diagrams

N336 - Left front damping adjustment valve Component Locations [1][2]Diagrams

N337 - Right front damping adjustment valve Component Locations [1][2]Diagrams

N338 - Left rear damping adjustment valve Component Locations [1][2]Diagrams

N339 - Right rear damping adjustment valve Component Locations [1][2]Diagrams

T47a - 47-pin connector
