Diagram 78/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Center console switch module 2, Damping adjustment button, Electronic damping control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

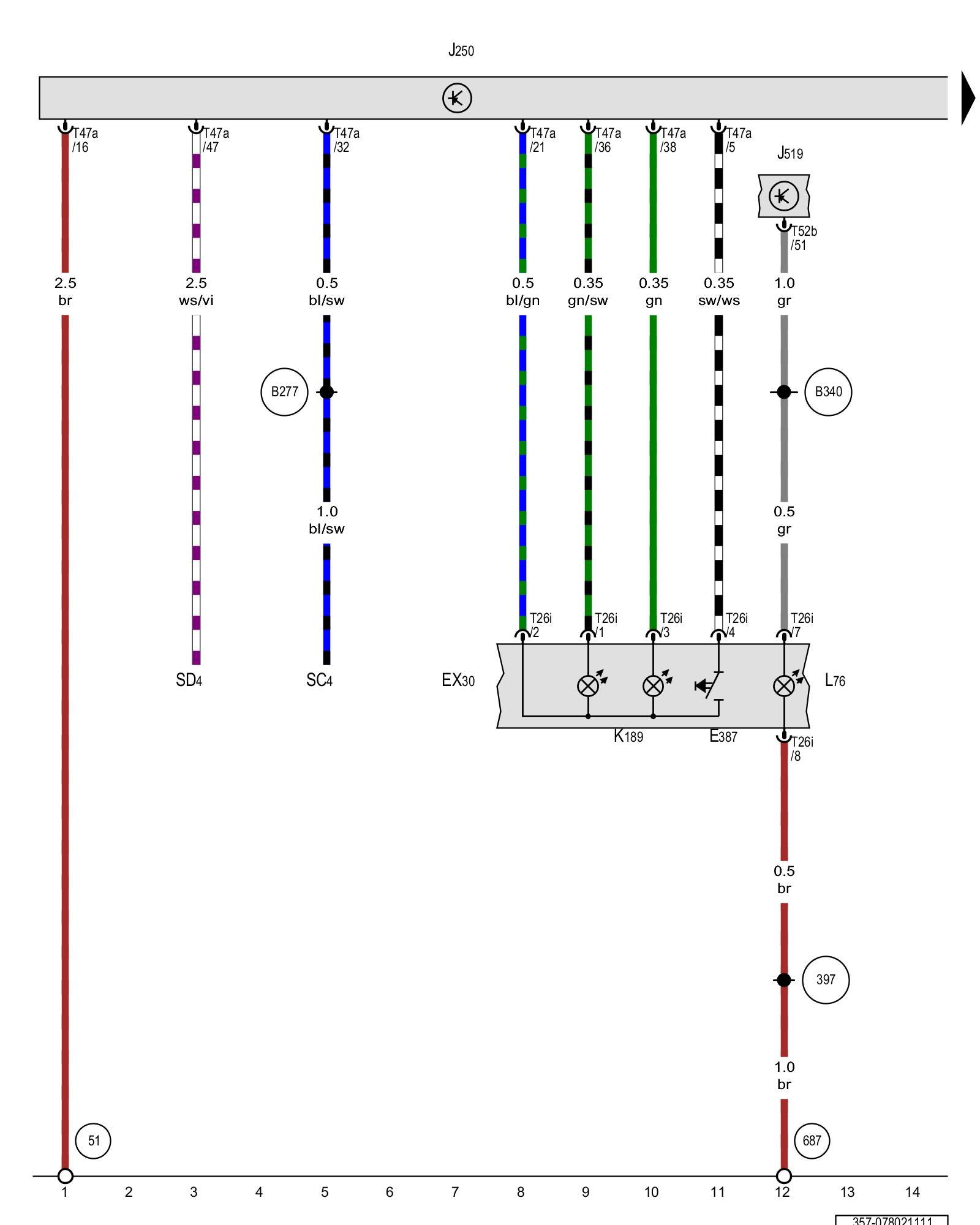

EX30 - Center console switch module 2

E387 - Damping adjustment button [1][2]Diagrams

J250 - Electronic damping control module Component Locations Diagrams

J519 - Vehicle electrical system control module Control Modules in Interior

K189 - Damping adjustment indicator lamp

L76 - Push button illumination bulb

SC4 - Fuse 4 (on fuse panel C)

SD4 - Fuse 4 (on fuse panel D)

T26i - 26-pin connector

T47a - 47-pin connector

T52b - 52-pin connector

(51) - Ground connection in luggage compartment, right Overview Of Ground Connections in Luggage Comp.

(397) - Ground connection 32 (in main wiring harness)

(687) - Ground connection 1 on center tunnel Overview Of Ground Connections in Interior

(B277) - Positive connection 1 (15a) (in main wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

Next Diagram 78/3 (Tracks 15-28)
