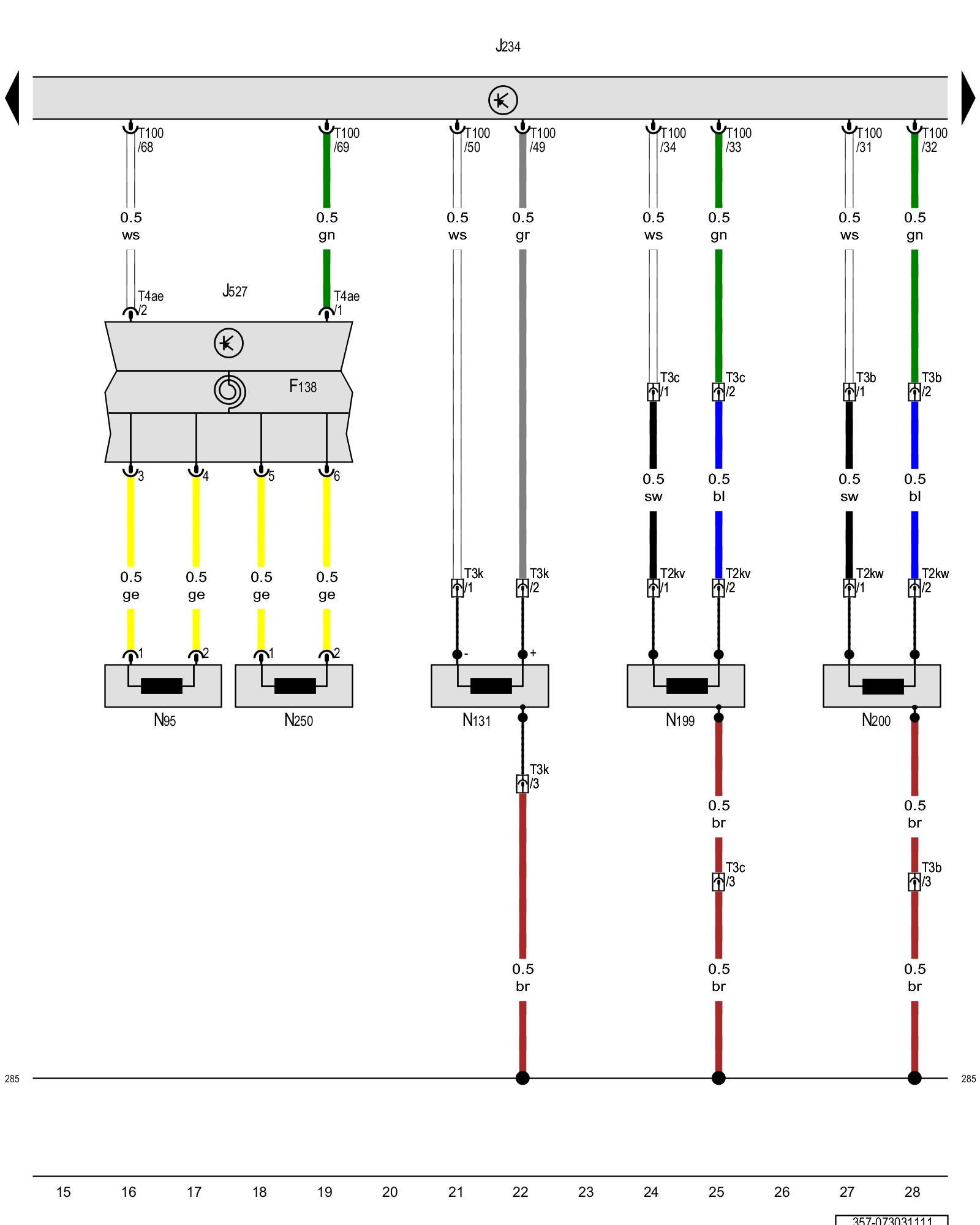

Diagram 73/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag spiral spring/return spring with slip ring, Airbag control module, Steering column electronics control module, Driver airbag igniter, Front passenger airbag igniter 1, Driver thorax airbag igniter, Front passenger thorax airbag igniter, Driver airbag igniter 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F138 - Airbag spiral spring/return spring with slip ring

J234 - Airbag control module Control Modules in Interior [1][2]Air Bag Control Module

J527 - Steering column electronics control module Control Modules in Interior Steering Column Electronics Control Module -J527-

N95 - Driver airbag igniter Airbag Component Location Overview

N131 - Front passenger airbag igniter 1 Airbag Component Location Overview Front Pass Airbag Igniter 1 and 2 -N131- / -N132-

N199 - Driver thorax airbag igniter Airbag Component Location Overview Driver and Front Pass Thorax Airbag Igniter -N199- / -N200-

N200 - Front passenger thorax airbag igniter Airbag Component Location Overview Driver and Front Pass Thorax Airbag Igniter -N199- / -N200-

N250 - Driver airbag igniter 2 Airbag Component Location Overview

T2kv - Double connector, in the driver seat

T2kw - Double connector

T3b - 3-pin connector, under the front passenger seat

T3c - 3-pin connector, under the driver seat

T3k - 3-pin connector, behind the glove compartment

T4ae - 4-pin connector

T100 - 100-pin connector

(285) - Ground connection 7 (in interior wiring harness)
